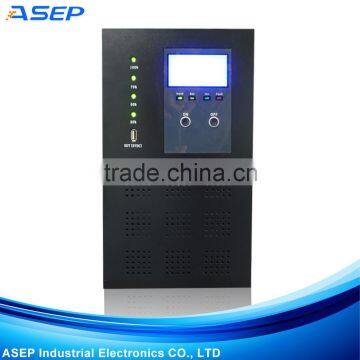

Short Circuit Protection Circuit 48Volt Power DC AC Inverter 240V Solar

Item No.		AP-500	AP-1K	AP-2K	AP-3K	AP-5K
Series Name		Off-Grid Inverter
Rated Capacity		500W	1KW	2KW	3KW	5KW
Input
DC Input Voltage	Nominal DC input voltage	12VDC		24VDC	48VDC	48VDC
	Backward noise current	≤10%
AC Input Voltage	AC input voltage	145V-280V 50Hz
	maximum input current	7A		12A	18A	35A
AC Output
Output Voltage		220V±10%
Output Frequency		50Hz
Output Waveform		Pure Sine Waveform
Waveform Distortion		≤5%
Dynamic Reaction Time		≤40MS
Power Factor		0.9
Protection Methods
Overload Capability		120% Fullload lasting for 10S
Overload protection		√
Short Circuit Protection		√
Functions
Invert Efficiency		≥83%		≥85%	≥90%	≥90%
Transfer Time		≤6MS
Rechage		Intelligent Recharge will adjust automacticly according to the battery capacity. Maximum 12A.
Batteries Protection		Automatic testing,Over discharge protection,Overcharge protection, Intelligent management
Physical
Shipping Weight		7KG	12KG	24KG	29KG	43KG
Shipping Width		385MM	385MM	515MM	515MM	435MM
Shipping Height		240MM	240MM	383MM	383MM	220MM
Shipping Depth		145MM	145MM	245MM	245MM	430MM
Display Monitor		LCD(Standard),Displaying Utinity Power condiction, inverting condiction,load capacity and battery capacity
Environmental
Operating Temperature		0℃~40℃
Operating Relative Humidity		0%~90% Non Condencing
Conformance
Regulatory Approvals		ISO9001
Standard Warranty		1 YEAR

Features:

1. Pure sine wave Output, applicable in various field
2. More stable, safer industrial online system
3. CPU with dual core, Better performance.
4. Availability of wide range of input voltage, AVR available
5. Protection against overload, short circuit, over/lower voltage, over-heat
6. LED+LCD display, evident showing
7. Extended batteries group available for prolonging back-up time
8. Intelligent battery management with over-charge and over-discharge protection
9. Temperature controller adjusting cooling ventilation, reducing noise
10. High efficiency of transferring, diminishing energy loss, increasing stability

Product Advantages

1.Smart Mute System

Smart regulation working condition so noise below 40DB

2.LED+LCD display, evident showing

3.CPU with dual core, better performance

4.Pure sine wave output, applicable in various field

5. Available wifi module

Wifi module enables the inverter status to be monitored in remote real-time
