Product Details
| Place of Origin | Guangdong, China | Brand Name | Tonsin Round LCD | |
| Model Number | 1.22 inch round lcd | Type | TFT |
Product Description

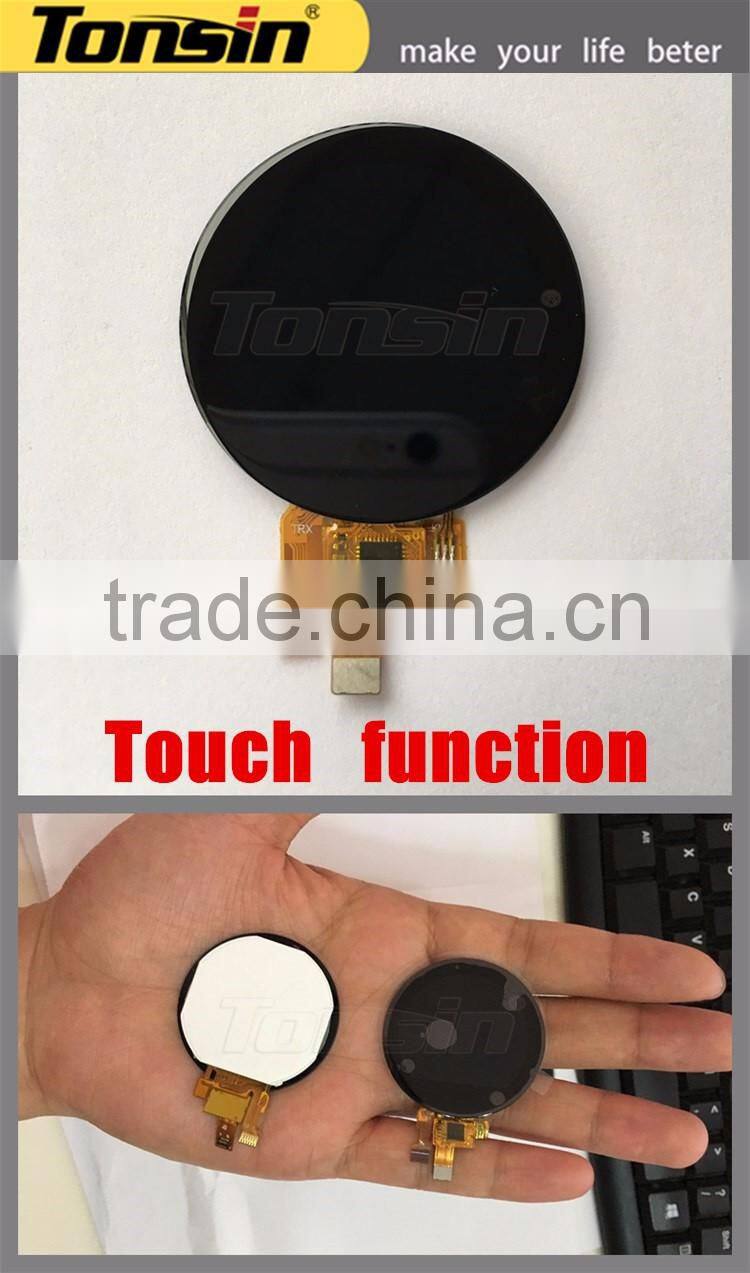

IPS LCD Dislay panels 1.22 inch round lcd screen,all viewing LCD Module 1.22 round tft screen with touch panel LCM
| Parameter | Value | Unit |
| LCD Mode | TFT/Transmissive | |
| Color Depth | 262K | |
| Display Resolution | 240RGB*204 | pixels |
| Module Size | 33.02(H)*33.66(W)*1.45(T) | mm |
| Active Area | 26.32(H)*30.96(W) | mm |
| Pixel Arrangement | RGB-stripe | |
| Viewing Direction | All O'clock | |
| Display Mode | Normally black | |
| LCD Controller/Driver | ST7789H2 | |
| IC Package Type | COG | |
| Interface | 3-line SPI | |
| Power Supply Voltage | 2.8 - 3.6 | V |
| LCM Brightness | 450 | cd/m2 |
| Touch | 2.5D touch screen |
- Our factory products pass the CE, FCC, RoHS, UL,UN38.3, MSDS .
- 100% testing according to ISO 9001 .
- 1 year warranty service due to non-artificial quality problems.
- We are the Gold and Trade Assurance suppliers .
Q1. What's your best price for 1.22 inch round LCD?
A1: We will quote you best price according to your need, such as quantity and type, so please let us know the details, we will feedback to you with best price and lead time.
Q2. What's your MOQ?
A2: Small quantity is OK, customer want to test the quality based with small quantity, and sample order is welcomed.
Q3. What's the delivery time?
A3: For samples order, 2-3 days will be enough, for bulk purchase , need about 10 days .
Q4. What's your payment term?
A4: Sample order: Wire transfer, Western Union, MoneyGram.
Offical order: 30% T/T prepaid, balance the payment before shipment.
Q5. What about the warranty?
A5: 1 year warranty , using in right ways.
