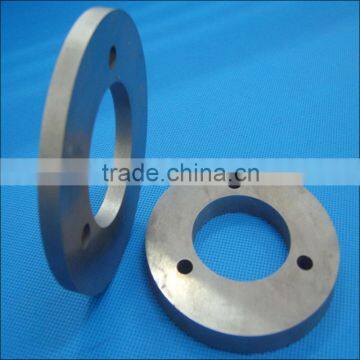

Customized Carbide Sealing Rings
- zhuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | lihua | |
| Model Number | LHCBSR0006 |
Product Description
Tungsten Carbide Sealing Rings
| TUNGSTEN CARBIDE SEAL RING:
 Tungsten carbide seal ring
 |
In various sizes and designs and with close dimensional tolerance for use as an integral part of mechanical seals in general utility pumps and chemical pumps. RCT tungsten carbide seal ring are used as the wear face of most mechanical seals for the sealing of fluids in all industries.
Application:
- All kind of mechanical shaft seals
- Rotary steam joints
- Compressors
Grades,Properties And Applicatins Recommended
| Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
| YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG11C | 14.40 | 86.5 | 2450 | Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
| Type | Dimension | ||
| D | d | H | |
| HR-156×94×70 | 156 | 92 | 62 |
| HR-156×87×62 | 156 | 87 | 61 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 |
| HR-170.66×95×70 | 170.66 | 95 | 70 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 |
| HR-180×87.32×72 | 180 | 87.32 | 72 |
| HR-180×120.65×72 | 180 | 120.65 | 72 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 |
| HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-228×135×72 | 228 | 135 | 72 |
| HR-228×130×72 | 228 | 130 | 72 |
| HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-285×160×95 | 285 | 160 | 95 |
| HR-285×160×70 | 285 | 160 | 70 |
| HR-300×160×70 | 300 | 160 | 70 |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10)Fast delivery and high quality;
11)Best after-sale service.
