Zhuzhou Cemented Carbide Sealing Ring
- zhuzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | lihua | |
| Model Number | LHCBSR0012 |
Product Description
Tungsten Carbide Sealing Rings
TUNGSTEN CARBIDE SEAL RING:

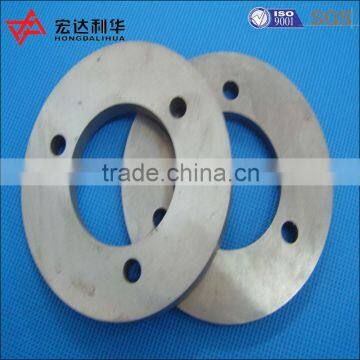

Tungsten carbide seal ring
|
In various sizes and designs and with close dimensional tolerance for use as an integral part of mechanical seals in general utility pumps and chemical pumps. RCT tungsten carbide seal ring are used as the wear face of most mechanical seals for the sealing of fluids in all industries.
Application:
- All kind of mechanical shaft seals
- Rotary steam joints
- Compressors
Grades,Properties And Applicatins Recommended
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Type | Dimension | ||
D | d | H | |
HR-156×94×70 | 156 | 92 | 62 |
HR-156×87×62 | 156 | 87 | 61 |
HR-158.8×87.32×62 | 158.8 | 87.32 | 62 |
HR-170.66×95×70 | 170.66 | 95 | 70 |
HR-170.66×95×57.35 | 170.66 | 95 | 57.35 |
HR-180×87.32×72 | 180 | 87.32 | 72 |
HR-180×120.65×72 | 180 | 120.65 | 72 |
HR-210.5×120.65×72 | 228.3 | 120.65 | 72 |
HR-212 ×120 ×60 | 212 | 120 | 60 |
HR-228.3×126×72 | 228.3 | 126 | 72 |
HR-228×135×72 | 228 | 135 | 72 |
HR-228×130×72 | 228 | 130 | 72 |
HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
HR-285×160×95 | 285 | 160 | 95 |
HR-285×160×70 | 285 | 160 | 70 |
HR-300×160×70 | 300 | 160 | 70 |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10)Fast delivery and high quality;
11)Best after-sale service.
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Foreign Sales Representative: Susie
Mobile:+86 18507339883 (available 24 hours.)
Skype: zhuzhoulihua
QQ: 1441388789
Wechat: shen88fafa
Factory Address:Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou city, Hunan province, China
Postcode: 412000
