Tungsten Carbide PCB V Cut Cutter
- Zhuzhou Any port in China
- T/T Credit Card
You May Like
-
Tungsten Carbide v Groove Cutter With High Hardness for PCB
-
PCB Carbide V Groove Cutter
-
Solid Carbide V-Cutter For PCB With Long Working Life
-
Cemented Carbide V-Cutter For PCB
-
Tungsten Carbide V-Cutter, PCB V-Cut With 20 Teeth
-
Tungsten Carbide Lathe v Cutting Tool Parts, Carbide V-cutter Quality Choice
Product Details
| Place of Origin | Hunan, China | Brand Name | Lihua | |
| Model Number | Customized OR Standard | Type | Other, Carbide V-Cut |
Product Description
Tungsten Carbide PCB V Cut Cutter
Advantage of Tungsten Carbide V-Cutter
1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. With strict tolerance extent control, the tolerance can reach +/-0.01mm;
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Advanced technology , automatic pressing , HIP sintering and precision grinding;
7. Tungsten carbide V-cut is for PCB cutting;
8. Sample and small order is acceptable

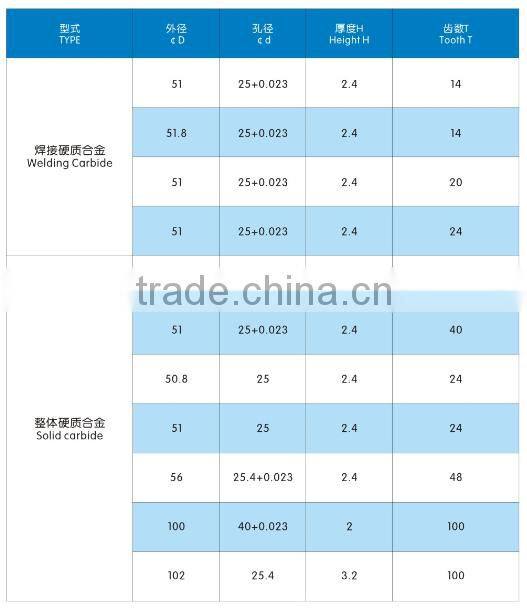

Dimensions of Tungsten Carbide V-Cutter

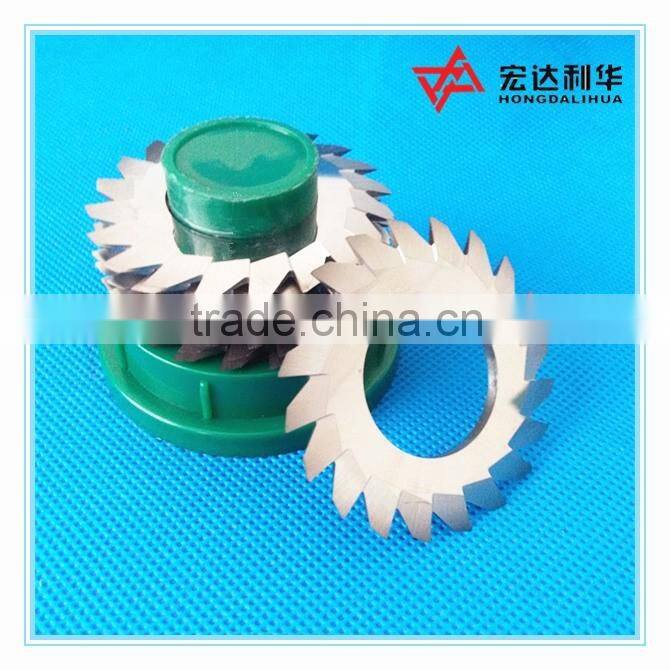

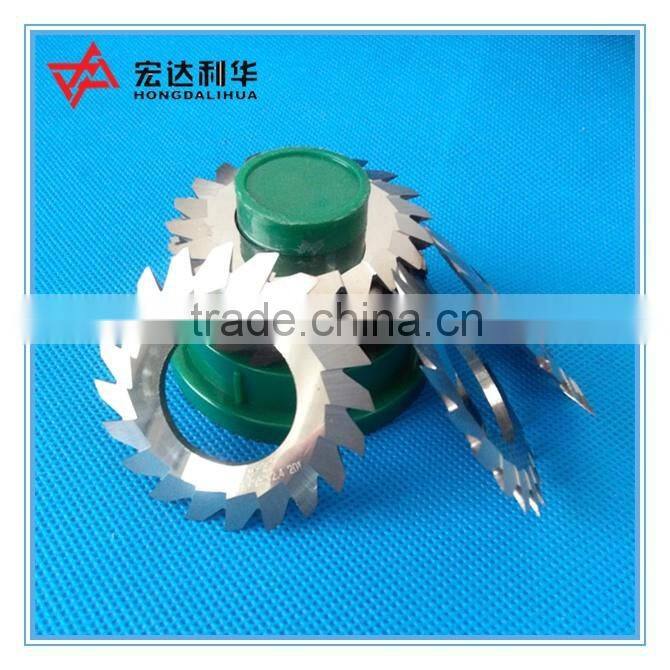

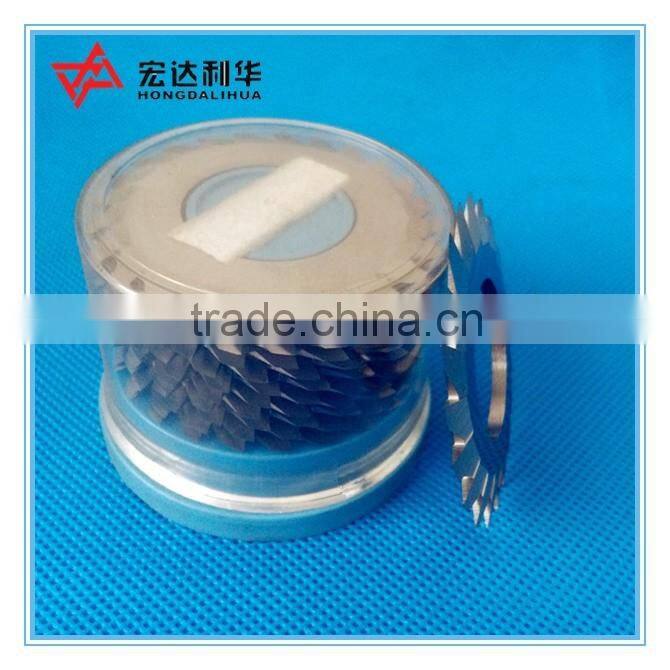

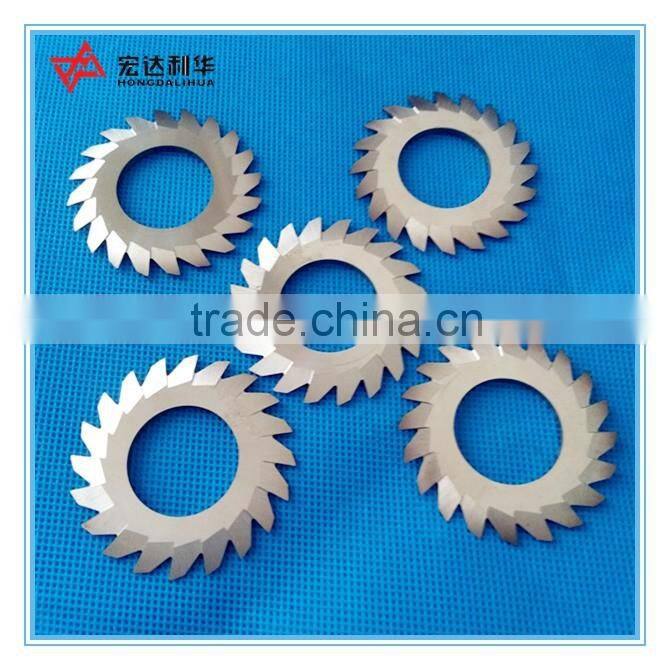

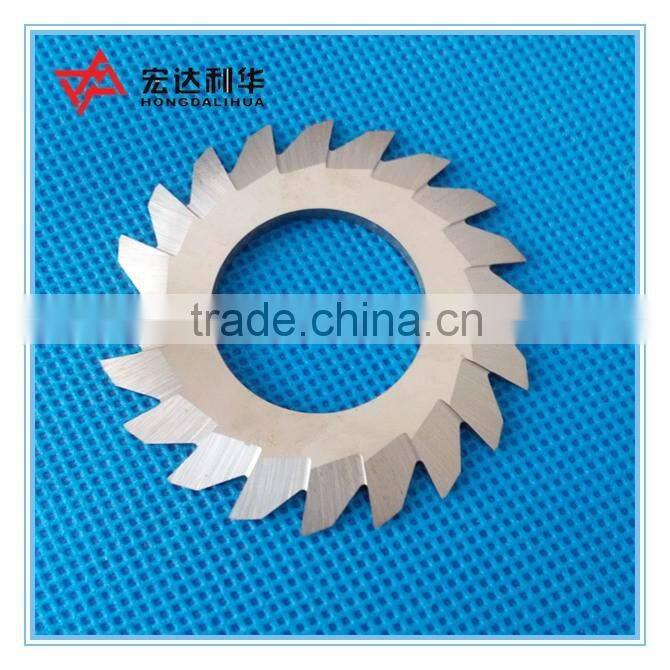

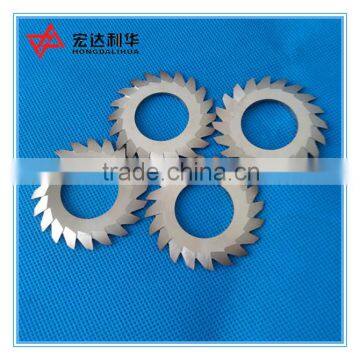

Product Images from Lihua Carbide Factory
Grade, Perfomance & Application of Tungsten Carbide V-Cutter
| Grade | Density | T.R.S | Hardness | Performance & application recommended | |||||||||
| g/cm3 | Mpa | HRA | |||||||||||
| YG6A | 14.9 | 1850 | 92 | Fine grain alloy, good wear resistance. Semifinishing of chilled cast iron, non-ferrors metals alloys, semi-finishing and finishing of hardened steel, alloy steel. | |||||||||
| YG6 | 14.8 | 2450 | 90.5 | High wear resistance, high bending strength,,used for dis saw blads in electrical line. | |||||||||
| YG8 | 14.8 | 2200 | 89.5 | High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrors metals and their alloys as well as non metallic materials at low cutting speed. | |||||||||
| YG8X | 14.7 | 2320 | 89.5 | High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrors metals and their alloys as well as non metallic materials at low cutting speed. | |||||||||
| YS2T | 14.5 | 2480 | 92 | Fine grade alloy, with high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. | |||||||||

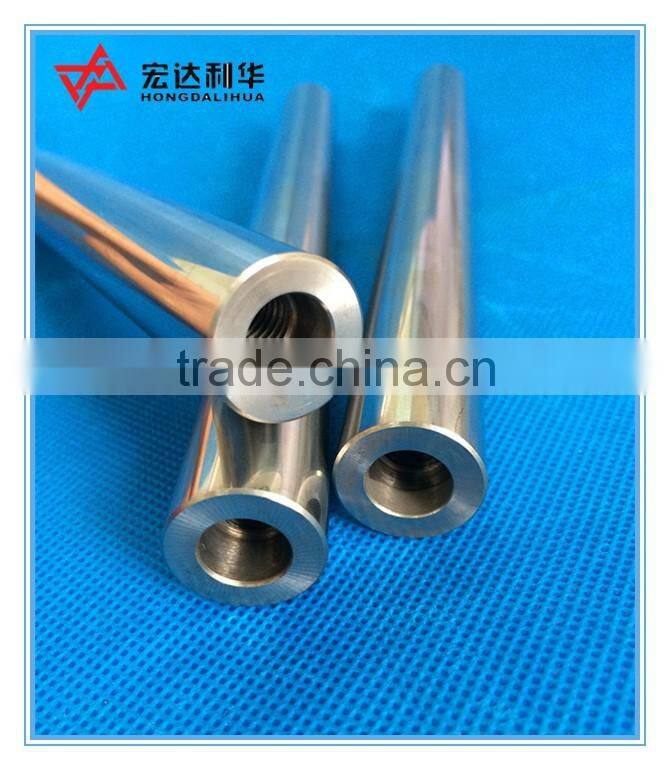

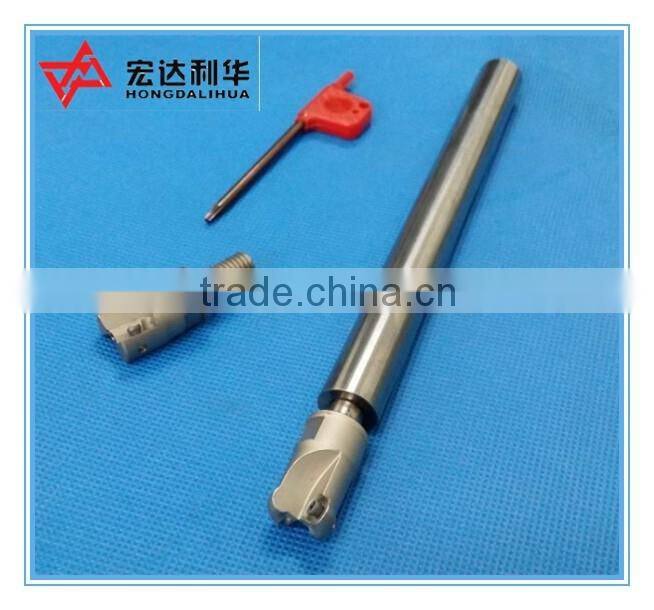

Other main product images
Shipment:
Estimate delivery time for each courier:
DHL: 10-14 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
Also can be shipped based on your requirement.
