Home > Products > Tungsten Carbide Rods > Lihua Tungsten Carbide Rod/Solid Carbide Rod
Lihua Tungsten Carbide Rod/Solid Carbide Rod
- Any china port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
Place of Origin | Hunan, China | Brand Name | LIHUA | |
Model Number | Tungsten Carbide Rod | Dimensions | Dia 3-32 * Long 320mm |
Product Description

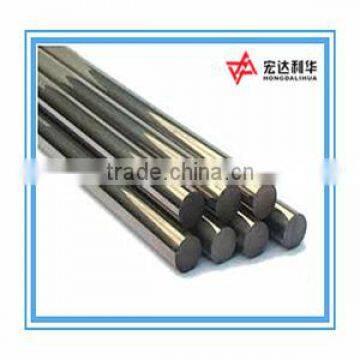

Lihua Tungsten carbide rod/Solid carbide rod
Carbide Rod Drawing
Description of carbide rods
Tungsten carbide rods are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc. Our Carbide rods have a good shock resistance and bending resistance in use.
Grade | ISO Code | Cobalt Content (%) | Density g/cm3 | Hardness HRA | TRS N/Mm2 |
YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
Specification of carbide rods
Product Name | Solid Carbide Rod/Bar/Stick |
OD tolerance | 0.5um |
Surface fineness | Ra0.025a |
sizes | Diamter: φ0.5- φ35mm,Length:100-330mm(diameter is φ 1.0- φ 6.0mm,length can up to 700mm) |
Type | Round(solid,hollow) |
Grade | YL10.2,YL50,YU06A,YU06R,YF06,YH6F,YG11 etc. |
Material | Carbide,tungsten carbide,cemented carbide |
Physical performance | High hardness,strength, wear resistance |
Non-standard or Tolerance | Can be customized |
Solid tungsten carbide rod/bar/stick
Diameter(D) | Tolerance | Standard length |
Φ0.5~5.5 | +0.30~+0.45 | 330 (+5.0/0) |
Φ6.0~40.0 | +0.20~+0.60 | 330(+5.0/0) |
Advantage:
1) Business Type: Manufacturer, Factory.
ISO9001,2008, SGS.
Focus on Cemented Carbide Industry for more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Foreign customer in our factory:
Shipping:
We use worldwild express companies as per below:
We normally dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Estimate delivery time for each courier:
DHL: 10-14 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
Company Brief Introduction:
Zhuzhou lihua cemented carbide co.,Ltd
Foreign Sales Representative: Rosa
Mobile/Whatsapp:+86 18973330019
Skype: rosa-lihua
QQ:472524669
Wechat: CLP472524669
Website: /
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou city, Hunan province, China
Postcode: 412000
