Home > Products > Tungsten Carbide CNC Inserts > Tungsten Carbide Insert for Lathe Turning Tools

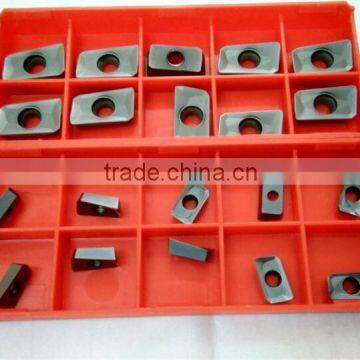

Tungsten Carbide Insert for Lathe Turning Tools

FOB Price

US$ 1.83 - 1.88 / Piece

10 Pieces(Min. Order)

Port Zhuzhou
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Material	Tungsten Carbide
Usage	External Turning Tool		Coating	CVD

Product Description

Applications

Tungsten carbide inserts have a thin metal blade or disk with a sharp, usually toothed edge. Tungsten Carbide blade is used for cutting wood, metal, or other hard materials. They can be hand-operated or power-driven. Our carbide inserts have used in surface processing of cast irons, colored metal and alloys, as well as nonmetal materials for hard metal, carbide rough turn, rough planning, and precision milling.

Applicable Machine	Tungsten carbide inserts for turning, milling, threading, grooving tool, cutting tools, etc.
Stock	For standard, have enough in stock For non-standard, need to be customized
Nonstandard order	Customize as request
Packing:	Can laser printing your logo and packing with your label
Coating:	CVD or PVD coating or as your require
Suitable for steel , cast iron , stainless steel etc materials

Detailed Images

Tungsten Carbide CNC Inserts Grade Information

Grade Recommendation of Tungsten Carbide Inserts

Grade	Applications
YBC151	High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.
YBC152	Thick TiCN and Al2O3 coating
YBC251	tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC252	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC351	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBG102	nc-TiAN coating and fine-grained matrix.
YBG202	nc-TiAN coating and fine-grained matrix.
YBG205	Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.
YBG302	nc-TiAN coating and flexible cemented carbide matrix.
YBM151	Special organizational structure and TiCN, thin Al2O3 and TiN coating.
YBM251	Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.
YBM253	With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.
YBD052	CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.
YBD102	CVD coating (thick Al2O3 & thick TiCN) , hard matrix.
YBD152	CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.
YBD252	CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.
YNG151	Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.
YNG151C	Physics weather deposit (PVD) coating, high toughness ceramal matrix.
YD101	Fine particle hardness phase WC and bond phase Co.
YD201	Middle particle hardness phase WC and bond phase Co.

Packing & Delivery

Packaging Details

standard exporting packing and could design all kinds packing according client requirement

Delivery Detail

7-25days

Contact

Foreign Sales Representative: Lumina
Mobile：+86 15173370139
QQ: 742277545
Website:
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, China
Postcode: 412000
