Welded Aviary Mesh
- XinGang port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Welded Mesh | Application | Other, constructions | |
| Weave Style | Other, welded | Wire Diameter | 0.55mm-5mm | |
| Technique | Welded Mesh | Model Number | n | |
| Brand Name | HD |
Product Description
Specifications
Welded Aviary Mesh:1.Wire:0.55mm-5mm 2.Mesh:6.4mm-30cm
3.Width:0.5m-1.8m 30mL
Welded Aviary Mesh :
1. Raw Material:
Electro galvanized wire, hot-dip galvanized wire, and PVC coated wire, stainless steel wire
2.Weaving Style:
1) Hot dipped galvanizing after welding;
2)Welding with hot dipped galvanized iron wire
3)Electric galvanizing after welding
4) Welding with electric galvanized iron wire
3. Features of welded wire mesh:
a> made of high quality steel wire.
b> various configurations and sizes.
c> used for the loose strata to avoid falling rocks.
d> suitable for shotcrete applications.
e> range of sizes to suit roadway width and bolting patterns.
f> easy installation
g> available in black or hot dip galvanized
h> size of wire aperture: 50x50mm,100x100mm,150x150mm,200x200mm, or according to customer request.
i> Max length: 6mm
j> width:1200mm,1700mm,2400mm, or according to customer request.
k> diameter of steel wire: 3.15mm, 4mm, 5mm, 6mm. or according to customer request
4. Specifications:
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: | ||
PVC Coated Welded Wire Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note: | ||
5. Application:
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
6. Pictures for your reference:

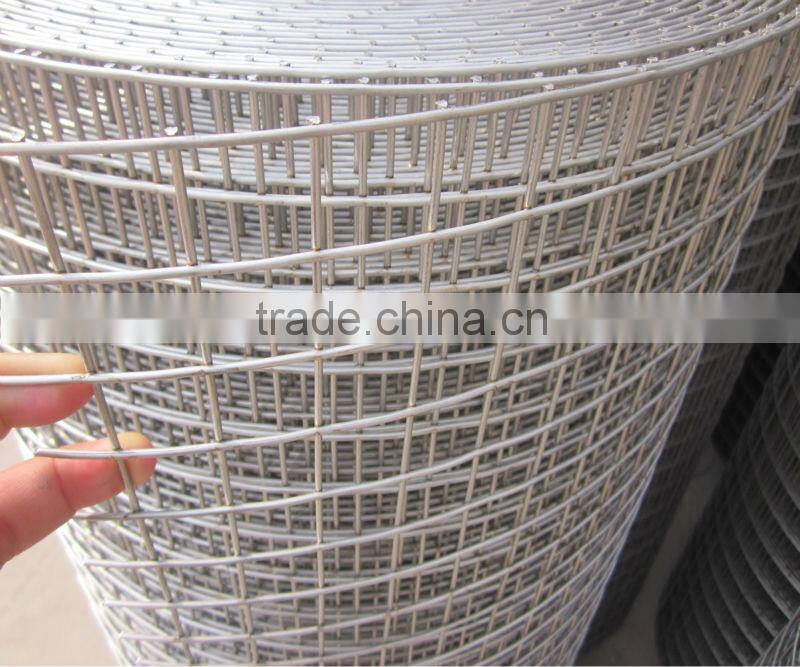

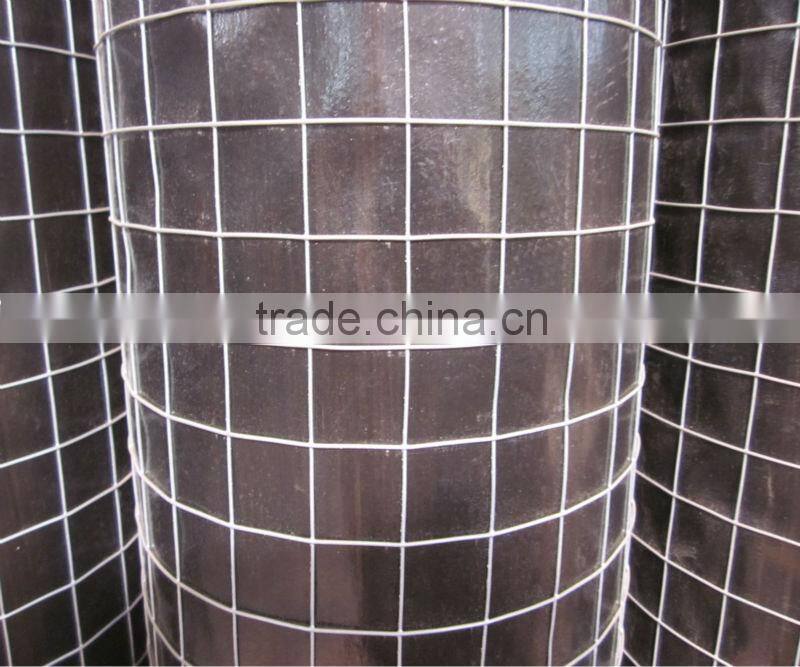

1) Galvanized Welded Wire Mesh

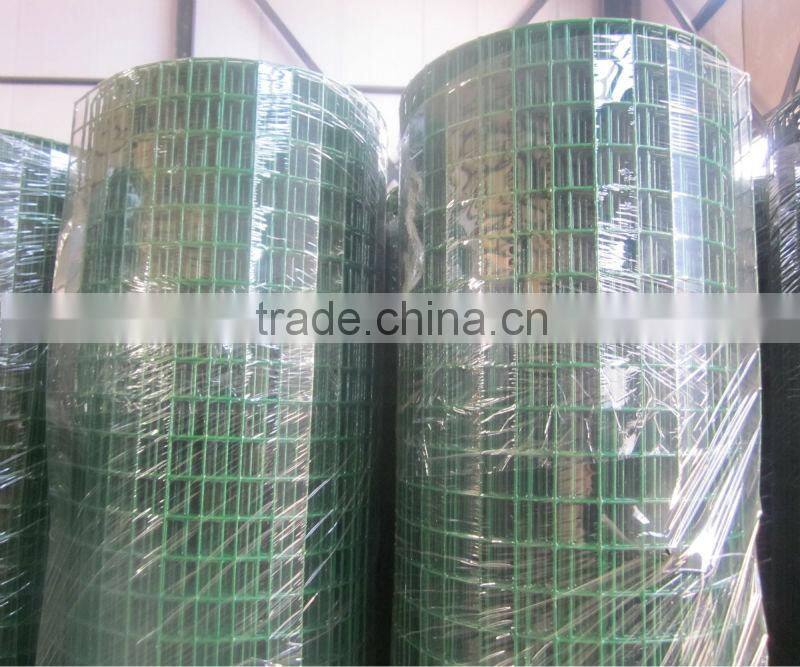

2) PVC Coated Welded Wire Mesh
