PF Series Impact Crusher for Sale
- ningbo or shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | rush in metallurgy,mining, | Motor Type | AC Motor | |
| Power(W) | 5.5 KW-110 KW | Capacity(t/h) | 1-800 t/h | |
| Place of Origin | China | Brand Name | JC | |
| Model Number | PE, PEX | Dimension(L*W*H) | depends on the model | |
| Weight | depends on the model | Certification | ISO 9001,CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PF series impact crusher for sale1.Big reduction ratio, efficient crushing
2.easy maintenance
3.No-board connection
PF series impact crusher for sale
Impact Crusher — Introduction
Impact crusher is used in crushing all kinds of materials whose fineness is below 500mm, and the pressure resistance around 350mpa. It has the features of big reduction ratio, efficient crushing, easy maintenance and cubic shape with final product. With perfect features and good performance, impact crusher is widely used in high road construction, water conservancy and construction process of gravel and so on.
Impact Crusher — Features
Big reduction ratio, efficient crushing and easy maintenance.
No-board connection.
The space between rotor and impact rack can be adjusted.
Final product with cubical shape.
Impact Crusher — Application
Impact crusher is widely used in high road construction, water conservancy and construction process of gravel and so on.
Impact Crusher — Working principle
Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacted to break on the rotor and then thrown to the impacting position to take another crushing. After that materials will spring back to hammer impacting area from impact wrist plate for crushing again. When the materials are crushed to the required size, they will be discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator.
Ø1250XΦ1050
| Model (mm) | max feed size (mm) | Rotor standards(t/h) | capacity power (kw) | weight(t) | Dimension(mm) |
| PF1210 | 300 | Ø1250XΦ1050 | 132 | 13.3 | 2630X2090X2890 |
| PF1214 | 300 | Ø1250XΦ1400 | 160 | 16.8 | 2630X2400X2890 |
| PF1214III | 300 | Ø1250XΦ1400 | 160 | 18.6 | 2870X2440X3120 |
| PF1310 | 350 | Ø1300XΦ1000 | 132 | 13 | 2720X2170X2330 |
| PF1312 | 350 | Ø1300XΦ1200 | 160 | 15 | 2720X2450X2330 |
| PF1315 | 350 | Ø1320XΦ1500 | 220 | 22.1 | 3260X2710X2620 |
| PF1520 | 400 | Ø1500XΦ2000 | 280 | 35 | 3430X3400X2740 |
FACTORY SITE:

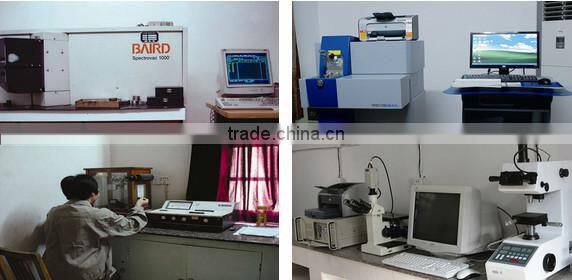

Testing Machinery:
Any color, any logo are acceptable, please leave a message for more information about the price, the discount and any you what.
