Famous Well Performance LCD Steam Autoclave Sterilizer

Famous Well Performance  LCD Steam Autoclave Sterilizer

SPECIFICATION

• Ø  LED or LCD display panel
• Ø  Adopt Motorola sensor for intelligent and precise control as well as fault auto-detection technique
• Ø  Precise temperature control (±0.5℃) during sterilization process
• Ø  Built-in program to clean the pipelines automatically and avoid the blockage
• Ø  The LCD can display the sterilization data and relevant curve clearly
• Ø  Built-in water quality, water shortage and water overrun monitoring features
• Ø  Safety value, double lock, mechanical lock, air lock and multi-level protection to ensure the pressure is safe
• Ø  Optional for printer, built-in USB module to output the sterilization data via USB Flash.
• Ø  Widely applied in orthopedics, ophthalmology and beauty etc. industries.

9 - Main fuses        10 - Power socket      11 - Serial port for printer      12 - Printed Label       13 - Water outlet

MIC Autoclave (Steam Sterilizer) Technical Specifications

1.Sterilization level: Class B

2.Sterilization temperature: 121℃,134℃

3.Special sterilization: HIV/AIDS, hepatitis b (HBV), mad cow virus and spore.

4.Drying procedure:A strong negative vacuum drying

5.Operation interface: Adopt the operation of the new interface LCD screen can display temperature and pressure time running state, fault alarm information, etc

6.Test system: Bowie&Dick Steam penetration test, Vacuum test, Helix test

7.Control accuracy: Temperature 0.1℃, pressure 0.1 Kpa.

8.Sterilization data: External USB connection , (printer is optional)

9.Multiple safety: Interlock protection device: Safety valve, Pressure interlock, door alarm, automatic breakdown check. Over temperature and pressure protected.

10.Water system:  Internal open water tank, easy to clear.

11.Sterilization Configuration:  Activities tray rack, match 3 pallets

AUTOCLAVE DETAILS SHOW:

-Micro-computer control, imported Motorola sensor, high accusation and precision.

-During the sterilizing procedure, the range of temperature is ±0.5.

-Automatic cleaning program in the steamer, avoid the occlusion.

-Display the sterilizing procedure date and curve.

-Water quality monitoring,indicate the water tank condition, automatic notice when used water tank is full.

-Safety valve, double lock, mechanical lock, air lock, multi pressure safe protection device.

-Printer is optional, record the sterilizing procedure with USB.

-Applied with orthopedics, ophthalmology, beauty industries and other area.

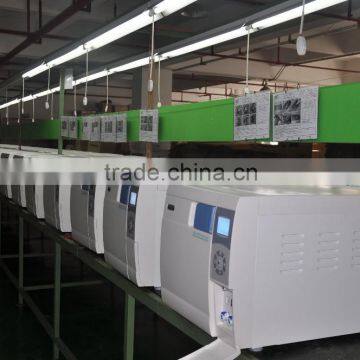

MIC Exhibition:

MIC Autoclave (Steam Sterilizer) Applications

1. Beauty

2. Orthopedics

3. Ophthalmology

Attentions:

The process sterilization can consider effective, reliable and repeatable on condition that the material is first suitably treated and subsequently tidy and correctly arranged into the sterilization chamber..

An incorrect arrangement of the load can lead to a difficult and sometimes impossible flowing and/or penetration of the steam on the material,with imaginable consequences. The drying process can strongly be also affected by this factor.

Therefore we suggest some basic directions concerning this aspects, leaving the user to deepen the problem in the most opportune way.
