JS SOLAR - TUV CE CEC UL MCS Certified 250, 260, 255W mono Solar Panel

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

standard size panel
N0.1 Quality Vs. Cost
covered by UL, TUV, IEC, CSA, CE, MCS, ISO9001/14001
good price and performance

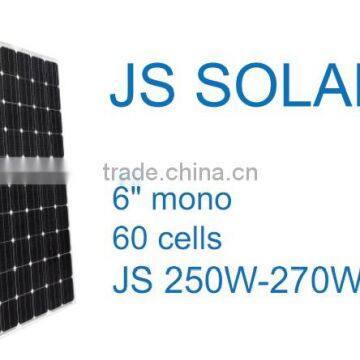

JS SOLAR - TUV CE CEC UL MCS Certified 250, 255, 260W Mono Solar Panel

Product show

Electrical Characteristics

	JS250M	JS255M	JS260M
Optimum Operating Voltage (Vmp)	30.70V	31.00V	31.30V
Optimum Operating Current (Imp)	8.15A	8.23A	8.32A
Open Circuit Voltage (Voc)	36.80V	36.90V	37.00V
Short Circuit Current (Isc)	8.87A	8.94A	9.02A
Maximum Power at STC (Pmax)	250W	255W	260W
Module Efficiency	15.32%	15.62%	15.93%

Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	15 A
Power Tolerance	0~+3%

STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;

Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%

Mechanical Characteristics

Solar Cell	MONO-crystalline silicon 156 × 156 mm (6 inches)
No. of Cells	60(6 × 10)
Dimensions	1640 × 992 × 40mm
Weight	20.0 kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP67 rated (3 bypass diodes)
Output Cables	TUV (2Pfg1169:2007), UL 4703, UL444.0 mm2, symmetrical lengths (-) 900mm and (+) 900 mm
Connectors	MC4 compatible
Mechanical load test	5400Pa
Resistance	277g steel ball falls down from 1m height and 60m/s wind

Temperature Characteristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.45 %/°C
Temperature Coefficient of Voc	-0.32 %/°C
Temperature Coefficient of Isc	0.06 %/°C

Packing Configuration

Production Line

automatic machines imported from Germany
