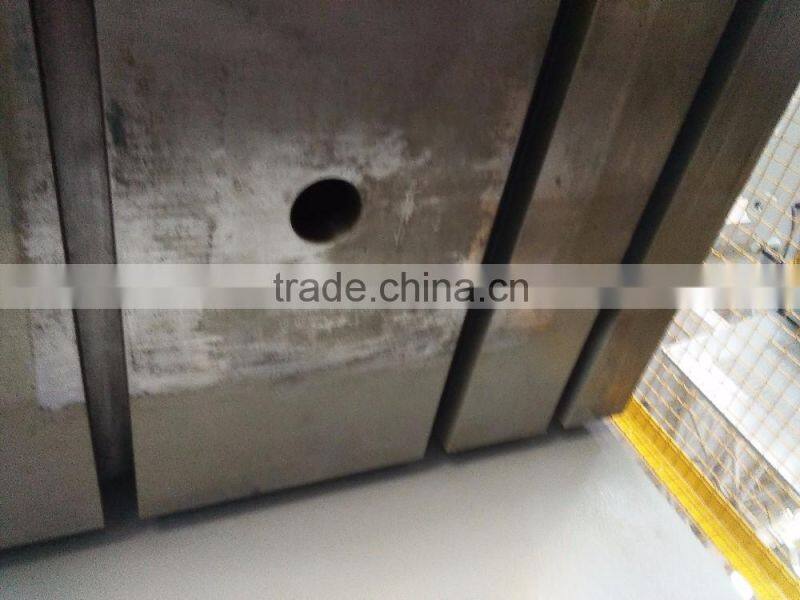

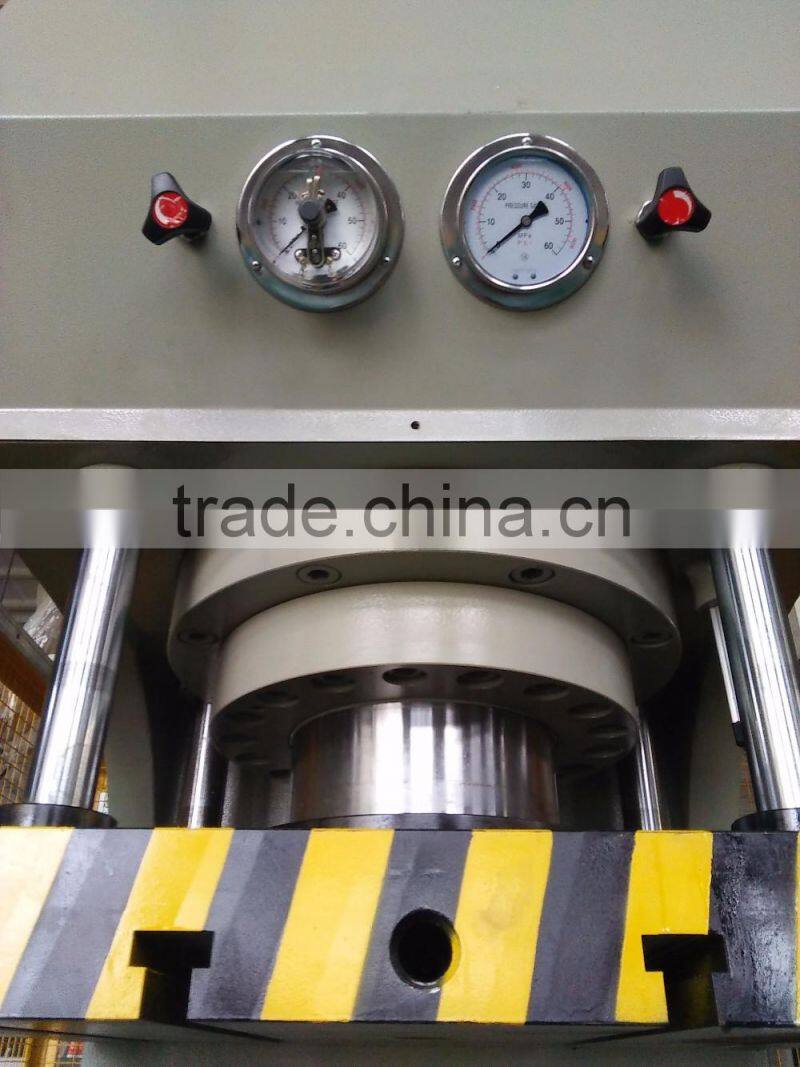

Deep Throat C Frame Hydrolic Punching Hydraulic Press Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	Used	Year	2016
CNC or Not	CNC	Power Source	Hydraulic
Place of Origin	Jiangsu, China	Brand Name	MEILI
Model Number	Y41-160ton	Voltage	220V/380V(According
Power(W)	18kw	Weight	18T
Dimension(LWH)	15007001800mm	Certification	CE ISO
Warranty	2 Years	After-sales Service Provided	Engineers available to service machinery overseas

Y41BSeries C frame hydraulic press is mainly applied to smaller auoto parts, bearings, electric appliance, plastic forming and train etc.

Controlled by PLC, double hands buttons and emergency button in automatic and manual.

Following are the specifications

Nominal Force		KN	1000	1600	1600	2500
Max. pressure of liquid		Mpa	25	25	25	25
Max. opening height		mm	800	800	800	800
Max. slide stroke		mm	500	500	500	500
Slider Speed	Downstream Speed	mm/s	200	210	260	210
	Working Speed	mm/s	10	18	7-15	12
	Return Speed	mm/s	180	250	240	200
Throat Depth		mm	320	330	330	330
Cushion Force		KN	400	630	630	1000
Cushion Stroke		mm	200	200	200	200
Cushion Size		mm	360x360	500x500	500x500	500x500
The force of upper ejector		KN	/	60	60	60
The stroke of upper ejector		mm	/	210	200	210
Upper Ejector Diameter		mm	/	140	140	140
Upper-table Size	F.B.	mm	500	600	600	600
Upper-table Size	L.R.	mm	550	800	800	800
Lower-table Size	F.B.	mm	600	650	650	650
Lower-table Size	L.R.	mm	800	900	900	1100
Cushion speed	Eject up	mm	/	/	80	/
Cushion speed	Return	mm	/	/	140	/
The height between worktable and the floor		mm	950	980	980	1100
Overall Dimensions (Approx)	L.R.	mm	1530	1630	1300	1700
	F.B.	mm	1530	1700	1600	2000
	Height above floor	mm	3300	3560	3600	3800
Motor Power		KW	7.5	11	18.5	15
Voltage			380V, 50Hz, 3 Phase
Operating Temperature		℃	0-40	0-40	0-40	0-40
Weight		Tons	6	9	9	12
Upper ejector			/	√	√	√
Movable protective net			√	√	√	√
Side supports			√	√	√	√
