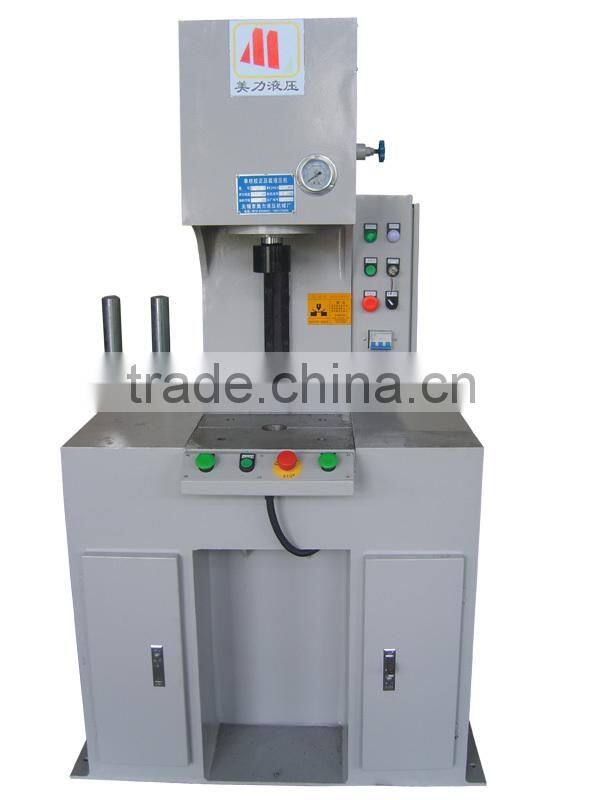

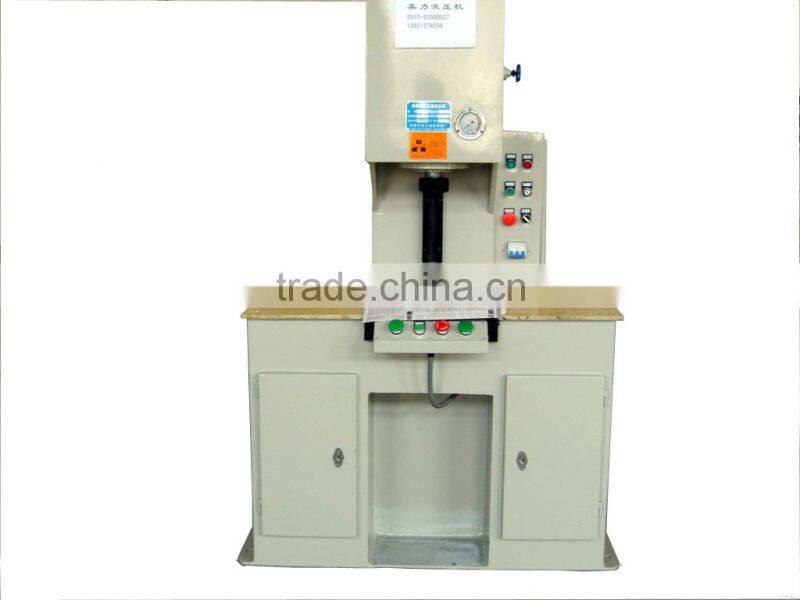

MEILI 1.6 Ton-10 Ton General Hydraulic Machine
- shanghai
- T/T Credit Card PayPal
You May Like
-
1.6 Ton-10 Ton Hot Plastic Stamp Machine
-
Hot Selling Hydraulic Hot Press Machine Cheap Sale With CE
-
MEILI-Y41-100T Low Price Single Column Hydraulic Cylinder Pressing Machine-CE&ISO9001
-
Y30 10T Single Column Universal Small Hydraulic Press Machine
-
Y30 Single Column Hydraulic Press Machine 5 Ton
-
Y30 Series Single Column Shaping Hydraulic Press Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | MEILI | |
| Model Number | Y30 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
general hydraulic machine1.single column
2.use a wide range
3.power source hydraulic
MEILI 1.6 ton-10 ton general hydraulic machine
Type | Unit | 1.6T | 2.5T | 4T | 6.3T | 10T | |
Nominal force | KN | 16 | 25 | 40 | 63 | 100 | |
Max pressure of liquid | Mpa | 3.2 | 5 | 7.9 | 8 | 8.1 | |
Max opening height | MM | 250 | 300 | 350 | 390 | 390 | |
Max slide stroke | MM | 160 | 200 | 200 | 250 | 300 | |
Slide speed | Down | MM/S | 42 | 42 | 45 | 45 | 45 |
| Return | MM/S | 70 | 70 | 75 | 85 | 75 |
Depth of throat | MM | 130 | 130 | 160 | 180 | 180 | |
Table size | F.B | MM | 320 | 320 | 340 | 340 | 400 |
L.R | MM | 200 | 200 | 360 | 360 | 360 | |
Table height above the floor | MM | 840 | 840 | 730 | 840 | 840 | |
Motor power | KW | 1.5 | 2.2 | 2.2 | 3 | 4 | |
Outline dimensions | F.B | MM | 750 | 750 | 735 | 900 | 900 |
L.R | MM | 990 | 990 | 900 | 1300 | 1300 | |
Height | MM | 1560 | 1560 | 1700 | 1820 | 1820 | |
Total weight | T | 0.4 | 0.5 | 0.52 | 0.75 | 1 | |
