Home > Products > Highway Guardrails > Armco Guardrail
Armco Guardrail
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Hua Feng | |
| Model Number | Guardrail |
Product Description
Specifications
crash barrier,highway guardrail,w beam guard rail,traffic barrier1. Hot dip galvanize
2. W beam and thrie beam are available
Company profile
We are a reputable manufacturer specialized in highway guardrail(also named as Crash barrier, Safety Barrier, Road Barrier) since 1994. We are also a contractor of highway guardrails, also we do installation. We export worldwide. We can manufacture W Beam (Profile A), Profile B, and different types of steel posts (C Posts, U Posts, Sigma Posts) and blocks, we can also supply bolts, nuts and washers, reflector, cat's eye, and relevant components, etc.
Place of Origin: Jiangsu China(mainland) Brand Name:Hua Xin

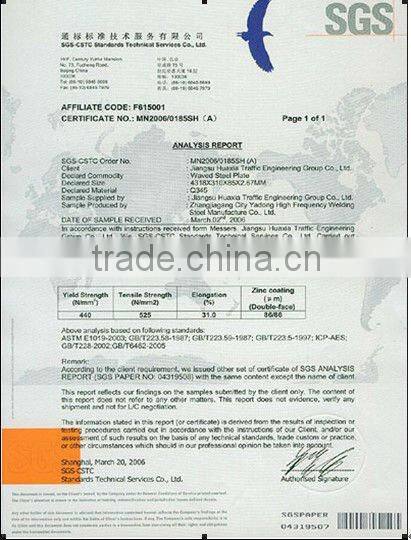

Certification: ISO9001, ISO14001, SGS
Certification& quality Control

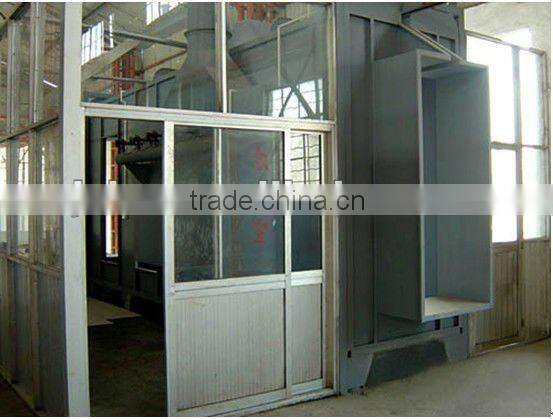

quality control centre
Use of highway guardrails
Highway guardrails are considered as passive protectors with a view to ensure the safety of the pedestrians by the wayside and the vehicles. Highway guardrails are designed in pursuance to the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.
Advantages of highway guardrails
• It makes the road apparent.
• It prevents the pedestrians and the animals from entering the road.
• It ensures the safety of the drivers and the passengers by hindering the vehicles going off the road.
Description of highway guardrail, road guardrail
1. W-Beam (thrie-beams are also available)
2. Base steel: Q235 (S235JR / ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)
3. Norma specification: 380*85*2.75/3/4*4128/4320mm or 306*80*2.75/3/4*4300mm
3. Hot dipped galvanized finish or powder coated.
4. Zinc coating thickness (double sides): 550 g/m2 (40µ) / 1100 g/m2 (80µ) / 1200 g/m2 (85µ)
5. Relevant parts required for guardrails: post, spacer (C, U and Sigma types etc) and fasteners
6. Other special specification as per client's requirement or drawings.
We manufacture highway guardrails according to those Standards below
a. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China)
b. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA)
c. RAL RG620 (Germany)
d. Or tailor-make according to client's requirements
| Normal W Beam Specification | 4130×310 × 85 × 2.5(2.67/2.7/3.0 ) |
| 4320 × 310 × 85 × 2.5(2.67/2.7/3.0) | |
| 3520 × 310 × 85 × 2.5(2.67/2.7/3.0) | |
| Profile A Specification | 4300 × 306 × 80 × 2.5(2.67/2.7/3.0) |
| Profile B Specification | 4300 × 310 × 75 × 2.5(2.67/2.7/3.0) |
| Three Beam Specification | 4320 ×506*85*4.0 |
| Base Steel | Q235 (S235JR / ASTM A283M) |
| Q345 (S355JR / ASTM A529M 1994) | |
| Zinc Coating | 550g/m²(40u) 1100g/ m² (80u) 1200g/ m² (85u) |
| Standard | JT/T 281-1995 AASHTO-M180 RAL RG620 |
