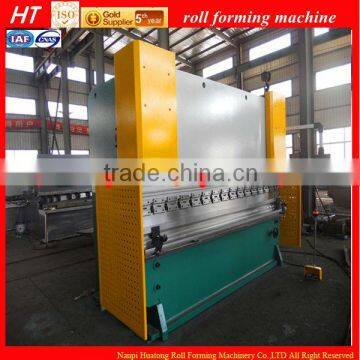

HT High efficiency NC hydraulic bending machine

FOB Price

USD $12,500 - $22,000 / Set

1 Set(Min. Order)

Port Port of Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Hebei, China
Brand Name	Huatong	Model Number	WC67K,WC67K-63/2500
Machine Type	Beading Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Machining
Certification	Other, ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

HT High efficiency NC hydraulic bending machine
bending machine
ISO9001:2008
Ball screw ,linear guide ,ABB motor

HT High efficiency NC hydraulic bending machine

1. Mechanical stop and torsion bar to maintain synchronization and high precision.
2. The machine uses Delem NC system, and imported linear transducer, pressure proportional valve and servo motor.
3. Ram stroke(Y) and backgauge(X,R,Z) are automatically controlled by computer.
4. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy.

The Technical parameters of WC67Y series

Type	Nominal force (KN)	Worktable Length (mm)	Poles Distance (mm)	Throat Depth (mm)	Slider travel (mm)	Max open (mm)	Power (kw)	Dimension L×W×H (mm)
40t/2200	400	2200	1850	230	100	320	5.5	2200×1200×1910
40t/2500	400	2500	1850	230	100	320	5.5	2500×1200×1910
50t/2500	500	2500	1850	230	100	320	5.5	2500×1210×2000
63t/2500	630	2500	1900	250	100	320	5.5	2500×1300×2210
63t/3200	630	3200	2560	250	100	320	5.5	3200×1300×2210
80t/2500	800	2500	1990	300	100	320	7.5	2500×1400×2300
80t/3200	800	3200	1560	320	100	350	7.5	3200×1500×2300
80t/4000	800	4000	3000	320	100	350	7.5	4000×1500×2400
100t/2500	1000	2500	2020	320	120	320	7.5	2500×1600×2400
100t/3200	1000	3200	2600	320	120	370	7.5	3200×1600×2600
100t/4000	1000	4000	3000	320	120	370	7.5	4000×1600×2700
125t/3200	1250	3200	2580	320	120	370	7.5	3200×1600×2600
125t/4000	1250	4000	3000	320	120	370	7.5	4000×1600×2700
160t/3200	1600	3200	2600	320	200	460	11	3200×1700×2700
160t/4000	1600	4000	3000	320	200	460	11	4000×1700×2800
160t/5000	1600	5000	4000	320	200	460	11	5000×1900×3100
