868MHz Cable Cut Alarm

Model:CX-GXCC4

Basic Functions

1. Blue LCD looks nice and upgraded .More comfortable operation with touch keypad. Concisely displays Date, Day of the week, Time, and current Armed Status.
2. The screen can show the language: English, Chinese, German, Russian, French, Japanese... Trad-Chinese and more to meet different market needs.

3. 4 Band GSM net-work. Support phone call alarm and SMS alarm.
4. 15 wireless zones. Supports 2 more wired zones(Optional).
5. Upto 6 groups of telephone numbers can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.

6. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.

7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed via SMS.

8. Non-volatile chip, information stored automatically when off power.
9. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.

10.Built-in Li-Ion backup batter, available in ACDC. System self-check, alert of phone line disconnection, low backup battery power and no external power.
11. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call.
12. One-key arm function. Learning sensors to alarm host, very easy operation.

13. Supports CID uploading to CMS(Center monitoring Station),can user our GSM CID connector to have this function.
14. "Black Box" date record function. Can store up to 99 alarm event information and 99 arm/disarm history.

15.Wireless or wired siren are optional for louder alarming sound.

16.More functions can be realized with more optional accessories(Note: consultation in advance is necessary).

17.Featured 868MHz Cable Cut Alarm Provider: Beyond Technology Industrial Ltd

Extended Functions

1.2 wired zones

2.wireless dingdong doorbell

3.wireless DVR PIR detector Alarm

Host Panel Description

Working Principle

Technical Parameters

	Main Panel Specifications: Network: GSM network Working Power: AC=100~240V, DC=12V 1A Stactic Current: <50mA (when not charging) Alarm Current: < 500mA Built-in Backup Battery:3.7V 800mAH(rechargeable) Standby: around 16 hours Full Charging time: 12 hours 4-band GSM: GSM 850/900/1800/1900MHz GSM Transmit Power:2W Receiving and emitting frequency: 868MHz Working Condition: Temperature:-10°C~50°C Humidity:<80% Product dimension:150*107*26(mm)
	Wireless Door/Window Detector Features: Generally set as Perimeter zone If any door or window is opened, it will transmit the alarm signals to the alarm host Specifications: Operating power: 23A 12V alkaline battery Emission Frequency: 868MHz Static Current: ≤20 mA Transmission Current: ≤15mA Transmission Distance: 30m Internal Distance: 15 mm Working Condition: Temperature -10°C~+ 40 °C Humidity ≤ 90% rh
	Wireless PIR Detector Features: Mainly monitor and control indoor space, generally set as Motion zone When human body enters into detecting area, the sensor will transmit alarm signals to the alarm host Specifications: Opeation Power: 9V alkaline battery Static Current: ≤100 mA Transmission Current: ≤20mA Transmission Frequency: 868MHZ±0.5MHZ Transmission Distance: 30m Detective Speed: 0.3 - 3m/s Detective Distance: Maximun 10m Detective Range: Horizontal 110° Vertical 60° Working Condition: Temperature -10 °C~+ 40 °C Humidity ≤ 90 rh
	Remote Control Features: To control the alarm host to arm and disarm With the emergency key for urgent help Specifications: Operating power: 12V 27A alkaline battery Emitting distance: 30m Emission Current:12≤15 mA Emission Frequency:f=868±0.2 MHz Emission Speed:T≤1 second Working Environment: Temperature -10°C~+40°C Humidity≤90%
	Wireless Flash Siren Specification       Model: Wireless Flash Siren         Function : Blue Light and sound when triggered         Frequency: 868MHz         Installation: Indoor and NOT waterproof         Volumn: 85dB         Transmission Distance: 30m          Dimension: 100*62*34mm         Note: EU UK US is Blue light (defaulted)         AU is Red light (defaulted)

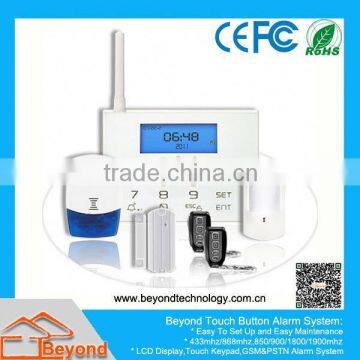

Standard Fittings

1. alarm host *1pc

2. wireless wide-range PIR detector *1pc

3. wireless door magnet *1pc

4. wireless indoor siren *1pc

5. remote control/key chain * 2pcs

6. power adaptor *1pc

Optional Accessories

1.Gas alarm

2.Smoke alarm

3.Wireless outdoor siren

4.Wireless keypad

5.Wireless curtain PIR sensor

6.Wireless intelligent door sensor

7.Wireless doorbell

8.Wireless DVR PIR detector

9.Wireless Outdoor Siren

10.Wireless Repeater

11.Wireless Panic

12.Wireless Smart Door/Window Sensor

(More accessories,Please Consult our foreign trade sales staff )
