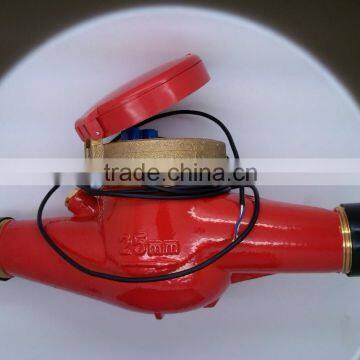

DN32, MULTI JET DRY TYPE HOT WATER METER
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOUNIO | |
| Model Number | LXSG-32E1 |
Product Description
LXSG-15E5 ~ 40E5
Features:
Magnetic drive, protected against external magnetic tampering;
Vacuum sealed register, frost resistant, keeps clear reading for long time;
Brass body;
Brass body can be painted
External adjusting device,;
For cold water;
Remote transmission device can be added upon request
Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request Pulse output may be 1l/pulse ,10l/pulse ;
The meters conform to ISO4064 Standard Class B
Working condition:
Water temperature≤50°c
Water pressure≤1MPa (PN: 1.6MPa/16bar)
ΔP≤0.1MPa(Class B)
ΔP≤0.063MPa(R80/R100)
Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs), exclusive:±2%
Technical data:
| DN/Q | Q4=1.25Q3 | Q3 | R=Q3/Q1 | Q2=1.6 | Q1 | R=Q3/Q1 | Q2=1.6Q1 | Q1 |
| l/h | l/h | l/h | ||||||
| 15 | 3125 | 2500 | 80 | 50 | 31.25 | 100 | 40 | 25 |
| 20 | 5000 | 4000 | 80 | 80 | 50 | 100 | 64 | 40 |
| 25 | 7875 | 6300 | 80 | 126 | 78.75 | 100 | 100.8 | 63 |
| 32 | 12500 | 10000 | 80 | 200 | 125 | 100 | 160 | 100 |
| 40 | 20000 | 16000 | 80 | 320 | 200 | 100 | 256 | 160 |
| Nominal size DN (mm) | Class of measurement | Overload flow-rate q s(m3/h) | Permanent flow-rate q p(m3/h) | Transitional flow-rate qt(l/h) | Minimun flow-rate qmin (l/h) |
| 15 | B | 3 | 1.5 | 120 | 30 |
| 20 | B | 5 | 2.5 | 200 | 50 |
| 25 | B | 7 | 3.5 | 280 | 70 |
| 32 | B | 12 | 6 | 480 | 120 |
| 40 | B | 20 | 10 | 800 | 200 |
Overall dimensions and weight
| Type | Size (mm) | Length (mm) L | Width (mm) W | Height (mm) H | Connecting Thread D | Weight (kg) |
| LXSG-15E5 | 15 | 165 | 80 | 100 | G 3/4"B | 1.1 |
| LXSG-20E5 | 20 | 190 | 98 | 105 | G 1"B | 1.7 |
| LXSG-25E5 | 25 | 220 | 105 | 110 | G 1 1/4"B | 2.4 |
| LXSG-32E5 | 32 | 260 | 120 | 120 | G 1 1/2"B | 2.8 |
| LXSG-40E5 | 40 | 300 | 120 | 155 | G 2"B | 5.2 |
LCL: Cartons/ Pallets
FCL: Cartons
