High Quality CNC precision machining machine 5STC-1325HND
- 130 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-

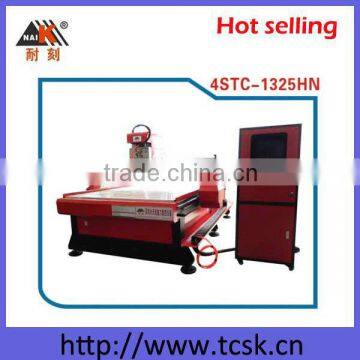

Long Life CNC Doors Engraving Machine(4STC--1325HN)
-
Double Head Wood milling machines with 6 spindles
-
2014Chinese powerful cnc router all in one woodworking machine
-
Large working erea marble cnc router (TC-6060C)
-
CNC Woodworking Machinery With low noise (12STC-2022)
-
multi-head engrave furniture hot-sale cnc wood engraving machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Guangdong, China | Brand Name | Naik | |
| Model Number | 5STC-1325HND | Voltage | 110/220/380v(option) | |
| Dimension(L*W*H) | 1300*2500*180 | Weight | 3500KGS, 4500kgs | |
| Certification | ISO9001,CE,FDA,SGS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality CNC precision machining machine
Product Description
1. T-gantry, with high precision linear guide rails and double nuts ball screw for transmission.
2. Cutting size: 1300*2500 mm.
3. Control system: NcStudio control system, easy to learn and convenient to use.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
5. 8mm thick heavy-duty tubular steel main body to ensure the stability.
Application Materials
Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Plexiglass, Aluminum sheet, Copper sheet etc.
Application Industries
Suitable for Furniture Industry, Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
Technical Parameter
Model No. | 5STC-1325HND |
Table Size | 1380mm×2900mm |
Effective Working Area | 1300mm×2500mm |
Z Axis Travelling | 180mm |
Feeding Height | 200mm |
Body Frame/Structure | 8mm Heavy-duty Steel |
Table | Aluminum alloy, T-slot |
X,Y Transmission | Germany slanting rack and pinion |
Z Transmission | Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration | Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy | ±0.1/300mm |
Spindle Rotating Speed | 0-24000rpm |
Spindle power | 4.5KW(3.0,5.5,6kw for option) |
Y Axis Drive Motor | Leisai Stepper Motor(Double Motor) |
X,Z Axis Drive Motor | Leisai Stepper Motor |
Movement Control | NCSTUDIO DSP handle control |
Carving Instruction | G code*,U00*,mmg*,nc |
Resolution | 0.00625/pulse |
Collet | 3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system | Water pump |
Power | 380V,50HZ±10(Internal Switch Power) |
Movement Pattern | Gantry Moving |
All the specifications can be customized as requested!
Pictures of sample:
Company Certificates
Packing
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact us !
