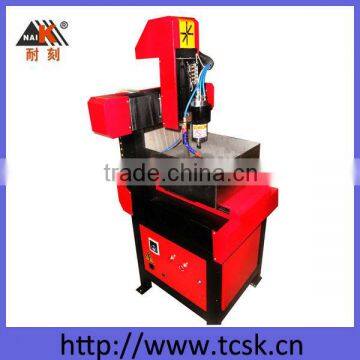

CNC Router Engraving Machine CNC 2030

Model No

TC-3020

Table Size

350mm×350mm

Effective Working Area

300mm×300mm

Z Axis Travelling

180mm

Feeding Height

200mm

Body Configuration

Cast Iron

Table Configuration

Cast Iron Table

Screw Configuration

20 Screw(Taiwan APPA C5 Grade Grinding Screw)

Rail Configuration

20 Square Guide  Taiwan Hiwin High Accuracy Linear Rail)

Positioning Accuracy

±0.015/300mm

Spindle Rotating Speed

0-24000(rmp/min)

X,Y,Z Axis Motor

Stepper Motor(Optional)

Movement Control System

High Performance Weihong Control System(6B Original)

Lubrication Method

Microcomputer Control Automatic Oiler

Carving Instruction

G Code*,U00*,mmg*,nc

Resolution

0.0025/Pulse

Collet

3.175mm,4mm

Spindle Power

1.5kw Water Cooling High Speed Motor

Movement Pattern

Chassis Dynamic

PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite

panel, Iron, Copper, Aluminum, Plastics and etc.

6,Adopting High speed water cooling frequency motor which make sure vigorously distance, strong

cutting, high frequency, long lifespan, prolonged working time.

8,Can be paused timely, increased and dis-creased speed, adjusted depth, and previewed engraving

 path plane and 3D drawing.

9,Advanced file pre-processing function: Help you correct errors of the file to be processed timely,

 compatible with multiprocessing code generated by different CAD/CAM soft wares, such as Wentai,

Mastercam, Type3,UG, Artcam, Caxa. JD Paint, proe /UG and etc.

10,Break point/knife and power failure continue engraving function: with auto-correction function for

homing point to assure the precision under long time use.

Wooden Box With Accessories inside

1),Electric Box(1pc) or computer control cabinet

(1),Tool box(1 set):

a,NCStudio Control card(1pc);

b,Data cable(1pc);

c,Disc(1pc);

d,Power cable(1pc);

e, Knife Tool(1set);

f,Upper blade wrench(1 set);

g,T-clip(1 set);

h,Allen wrench(1 set);

I,toolholder;

j,Random Software Data sheet(1pc);

k,Pump(2pcs);

l,packing list(1pc)

Qty/Ctn

1Set/ctn

Cartoon Size

Based on the products
