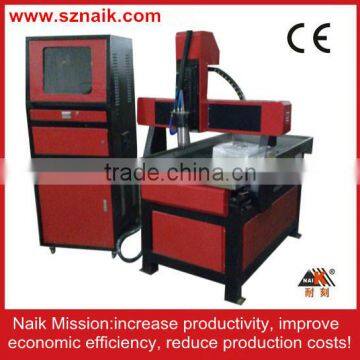

high quality cheap 3D engraving machine

high quality cheap 3D engraving machine

Product features high quality cheap 3D engraving machine :

• With 600mm* 900mm engraving range;

• With whole casting iron frame, to ensure the structure stability, low inertia and no distortion;

• HIWIN linear guide and sliding block, dual screw-nut anti-gap rod, with high accuracy, low noise, and long life;

• Equipped with high-speed spindle motor, high-performance division drive to ensure the long time and stable working;

• High precision, the curving and linear speeds are consistent. Adopting execellent parts makes the fault rate to be the lowest one.

• The machine adopts gantry movement, it can process any kinds of materials freely.

• Adopted with advanced controlled system, with simple operating software, it’s easy to learn; And the operator can check the real-time trajectory, plus or minus Z-axis depth in real-time, and adjust the motor speed conveniently;

• Powerful compatibility for most of software such as: type3, Artcam, Proe, Wentai a variety of CAD / CAM;

• Humanized design, convenient for removing and installing;

• Can meet not only the high sensitivity, high accuracy, high speed small sculpture, but also can adapt to large acrylic cutting, three-dimensional billboard production, wood carving

Product details with pictures of high quality cheap 3D engraving machine :

Motion Control System
	The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional
Driving Motor
	The Driving Motor is the executive component of the automatic control   system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. AC Servo motor is more popular for its advantages on performance and accuracy, but more costly. The brand can be Dongneng/ Yaskawa/ Mitsubishi/ Panasonic, etc. With different prices.
Frequency Converter
	The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof.
Main Spindle
	There are two kinds of spindle: Water cooling and Air cooling spindles. And with different  power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW, etc. With AC220V voltage, and speed can be 0-24000(R/Min). The output voltage and frequency can be adjusted timely by a frequency converter. Advantage: work with high frequency, stable, low noise, fast heat dissipation, and long operating life.
Guide rail and sliding block
	We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction is small and positioning accuracy is much higher than sliding friction. The accuracy can be at μm level. It can work with high speed and low power dissipation, and can easily be assembled and replaced.
Dual screw-nut anti-gap rod
	The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional.

Picture of deliver goods

Shipping Terms

1,EXW

2,FOB SZ

3,CIF+Destination port

4,If you need us to book shipping cargo or not and etc,pls notice us,we are more

pleased to do so.

Payment terms

1,T/T   30%T/T in advance against the order confirmed and pay the balance 70%

against goods ready.

2,Western Union   Total amount should be below than 5000 USD,and the bank

handling fee should be responsible for you.

3,L/C      We would like to talk details with you if you really need L/C payment terms

 certificate-CE/FDA/BV and so on

We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.

And we offer all kinds of CNC parts.

To know more about our products, please feel free to contact with us !
