Home > Products > Condenser > 1water Cooled Condensers for refrigeration condensing units

1water Cooled Condensers for refrigeration condensing units

FOB Price

USD $150 - $5,600 / Unit

1 Unit(Min.Order)

Supply Ability 1 Unit / Units per Month
Port Shanghai/Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Condenser	Place of Origin	Shanghai, China
Brand Name	Meluck	Model Number	FWS Series
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

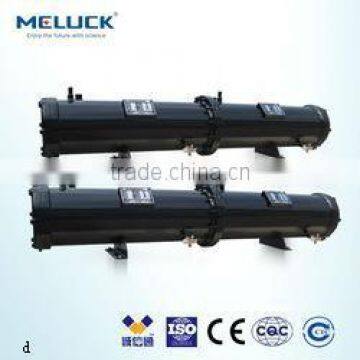

Shell and Tube Type water cooled Condensers

Product Descrption and Features

1. They are designed and produced strictly accorded with the National Standard and supervised under the National authority. We have specially manufacturing license for it.

2. The inner copper pipe is high efficient grooved type.

3. WS is suitable to air conditioning system; FWS is bigger vessel design, with liquid receivers.

4. The safety devices are equipped to assure safety for high temperature and pressure.

5. The product has been tested under the air pressure and water pressure, with 2.8MPa for shell and 1.0MPa for pipes.

6. The product has air evacuating devices, is convenient to evacuate unsolvable gas to improve the safety and efficiency of the products.

7. Super cooling pipes are employed to improve the efficiency.

8. Good quality welding makes it no debris and impurities left.

Design condition:

Temperature of cooling water in; T1 =30°C;

Temperature of cooling water out; T2 =35°C;

Condensing Temperature T=40°C,

Cooling water velocity: V=1.5-2m/s

Model	Capacity	Water Flow	Overall size (mm)
Model	kW	m³/h	C	D	T	T1	B	H
FWS-3	8.2	1.8	195	168	734	650	190	300
FWS-4	11.6	2.5	195	168	734	650	190	300
FWS-5	14.3	3.1	195	168	736	650	190	305
FWS-8	20.8	3.2	195	168	1076	990	190	305
FWS-10	28	6	238	219	1304	1200	250	350
FWS-15	43.5	9.4	238	219	1304	1200	250	357
FWS-20	57	12.3	300	273	1304	1200	300	410
FWS-25	69	15	300	273	1304	1200	300	410
FWS-30	80	17	300	273	1304	1200	300	410
FWS-35	99	21	300	273	1606	1500	300	410
FWS-40	115	25	300	273	1606	1500	300	410
FWS-45	126	27	300	273	1606	1500	300	410
FWS-50	142	31	300	273	2104	2000	300	410
FWS-55	157	34	300	273	2104	2000	300	410
FWS-60	177	38	300	273	2104	2000	300	410

Specification
