2FN V Type Air Cooled Condensers for refrigeration condensing units cold room compressor freezer refrigerator
- 1 Unit / Units per Month
- Shanghai/Ningbo
- T/T
You May Like
-
3Air Cooled Condensers for refrigeration condensing units refrigerator
-
2Air Cooled Condensers for refrigeration condensing units refrigerator
-
2FNV series fin type evaporator condenser for referigeration condensing unit freezer refrigerator
-
3water Cooled Condensers for refrigeration condensing units freezer
-
3FN series cooper fin condenser/air cooled condensers for refrigeration condensing units freezer
-
3FN series V type condenser/fin type evaporator condener for refrigeration freezer
Product Details
| Type | Condenser | Place of Origin | Shanghai, China | |
| Brand Name | Meluck | Model Number | FNV Series | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

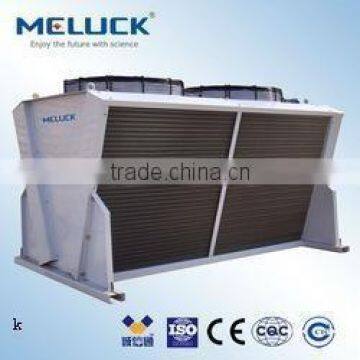

FN v type air cooled condensers
1. Product description
The FN series Products are air cooled heat exchangers for refrigeration system. They are divided in 4 groups: FN, FNC, FNS and FNV. The air flow of them all is flowing out by side except FNV, which is top blowing. All the products have been tested on 2.8MPa air leakage, and the system is disposed of pollution, applicable to R22R134aR404AR407C systems.
2.Specification
Model | Capacity kW | Area M2 | Fan | Pipe dia. | Overall size | Installation size | |||||||
Input W | Voltage V | Airflow M3/h | Refrigerant | A | B | C | a | a1 | b | ||||
Gas in | Liquid out | ||||||||||||
FNV-72 | 21.5 | 72 | 1×750 | 380 | 7950 | 2×φ22 | 2×φ16 | 940 | 980 | 880 | 740 | / | 900 |
FNV-111 | 33.5 | 111 | 2×750 | 380 | 16200 | 2×φ22 | 2×φ16 | 1540 | 980 | 960 | 1340 | / | 900 |
FNV-158 | 47.5 | 158 | 2×750 | 380 | 16200 | 2×φ22 | 2×φ16 | 1540 | 980 | 1000 | 1340 | / | 900 |
FNV-180 | 54 | 180 | 2×850 | 380 | 20700 | 2×φ28 | 2×φ22 | 1840 | 980 | 1100 | 1640 | / | 900 |
FNV-219 | 65 | 219 | 2×850 | 380 | 20300 | 2×φ28 | 2×φ22 | 1840 | 980 | 1100 | 1640 | / | 900 |
FNV-270 | 81 | 270 | 3×880 | 380 | 34800 | 2×φ28 | 2×φ22 | 2640 | 1030 | 1100 | 2440 | 1220 | 950 |
FNV-328 | 99 | 328 | 3×880 | 380 | 34200 | 2×φ28 | 2×φ22 | 2640 | 1030 | 1100 | 2440 | 1220 | 950 |
FNV-383 | 115 | 383 | 3×880 | 380 | 34800 | 2×φ28 | 2×φ22 | 3040 | 1030 | 1100 | 2840 | 1420 | 950 |
FNV-455 | 137 | 455 | 4×880 | 380 | 45600 | 2×φ35 | 2×φ28 | 3240 | 1050 | 1200 | 3040 | 1520 | 950 |
FNV-570 | 171 | 570 | 4×880 | 380 | 44000 | 2×φ35 | 2×φ28 | 3240 | 1050 | 1200 | 3040 | 1520 | 950 |
