3Industrial Air Coolers (D Series) cold room

FOB Price

USD $113 - $3,300 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Cooler	Place of Origin	Anhui, China
Brand Name	MELUCK	Model Number	DL
Certification	CE

Product Description

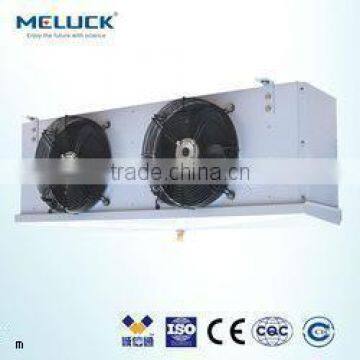

MELUCK D series industrial air cooler for cold room

Products Description

The D series of air coolers, features cabinet of steel plate with plastic spray, with 4.5, 6.0, 9.0 mm fin space coils, has DL, DD, DJ 3 sub series of products for differenct range temperature need. DL for around 0°C, DD for ~ -18°C, DJ for temperature below -25°C rooms. In side are evenly arranged defrosting heaters. The bottom has double water receiver

Model code

DD19/453A

D Series Name

D Room Temperature, L:0°C D:-18°C J:Below-25°C

19 Normal Capacity KW

45 Fan Dia cm

3 Fan Qty

A A:380V 3 Phase 50HZ B:220V 1 Phase 50HZ C:220V 3P 60HZ

D:220V 1 P 60HZ E:110V 1 P 60HZ (D E Fan Dia≤500mm)

Specifications

DL Models ( Fin Space 4.5mm)

Model	Capacitykw DT=7K t₀=-7°C		Aream²	Tube Vdm³	Air Flowm³/h	Air Throwm	Fan InputW	Defrosting W		Pipe dia mm		Drainage dia
Model	R22	R404A	Aream²	Tube Vdm³	Air Flowm³/h	Air Throwm	Fan InputW	Coil	Rever	Liquid	Gas
DL2.2/311A	2.2	2.3	7	1.4	1500	9	90	1.0	0.5	φ12	φ16	1″
DL3.5/311A	3.5	3.7	11	2.4	1500	9	90	1.5	0.5	φ12	φ19	1″
DL4.7/312A	4.7	4.9	14	3.1	3000	9	180	1.8	0.9	φ12	φ22	1″
DL6/312A	6	6.3	26	4.4	3000	9	180	2.7	0.9	φ12	φ22	1″
DL9/352A	9	9.5	35	6.1	4500	10	280	2.7	0.9	φ16	φ22	1″
DL12.5/402A	12.5	13.1	43	7.9	7000	13	360	3.6	1.2	φ16	φ22	1″
DL14.5/402A	14.5	15.2	52	9.4	7000	13	360	4.8	1.2	φ16	φ28	1″
DL17/402A	17	17.9	61	11	7000	13	360	6.0	1.2	φ16	φ28	1″
DL25/502A	25	26.3	87	15.6	12000	17	900	7.5	1.5	φ22	φ35	1″
DL29/453A	29	30.5	104	19.1	13500	17	750	8.0	2.0	φ22	φ35	1″
DL36.5/503A	36.5	38.3	122	22.4	18000	19	1350	8.0	2.0	φ22	φ42	1″
DL42/503A	42	44.1	156	25.6	18000	19	1350	10.0	2.0	φ22	φ54	1″
DL49/503A	49	51.5	182	32	18000	19	1350	12.0	2.0	φ22	φ54	1″
DL59/504A	59	62.0	208	38.7	24000	19	1800	13.0	2.6	φ22	φ54	1″
DL70/554A	70	73.5	260	45.1	30000	25	2400	15.6	2.6	φ22	φ54	1″
DL84/554A	84	88.2	306	58	30000	25	2400	18.6	2.6	φ28	φ54	1″
DL103/604A	103	108.2	371	70.9	42000	25	3120	20.8	2.6	φ35	φ60	1″
DL112/634A	112	117.6	390	77.3	46000	25	3200	23.4	5.2	φ35	φ60	1″
DL122/634A	122	128.1	463	83.7	46000	28	3200	26	5.2	φ35	φ60	1″
