DNC ISO6431 Festo pneumatic cylinders price

FOB Price

USD $3 - $120 / Piece

5 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Actuator		Place of Origin	Zhejiang, China
Model Number	DNC		Brand Name	FESCOLO

Product Description

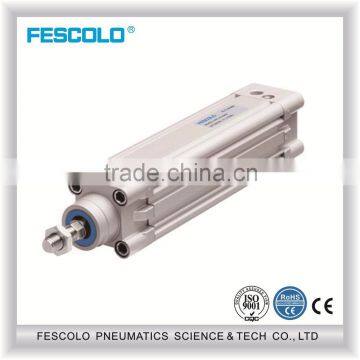

DNC ISO6431 Festo pneumatic cylinders

Product Description

Specification:

Bore (mm)	32	40	50	63	80	100
Action	Double action
Applicable medium	Air
Pressure range	0.1~0.9 MPa
Proof pressure	1.35 MPa
Temperature range	-5°C~70°C
Speed range	30~800 mm/s
Cushion style	Adjustable cushion
Cushion stroke	24mm				32mm
Port size	G1/8	G1/4		G3/8		G1/2

Air cylinder stroke:

Bore(mm)	Standard stroke	Max. stroke	Permi. stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

ISO air cylinder Specification:

Bore (mm)	32	40	50	63	80	100
Action	Double action
Applicable medium	Air
Pressure range	0.1~0.9 MPa
Proof pressure	1.35 MPa
Temperature range	-5°C~70°C
Speed range	30~800 mm/s
Cushion style	Adjustable cushion
Cushion stroke	24mm				32mm
Port size	G1/8	G1/4		G3/8		G1/2

Stroke of the FESTO air cylinder

Bore(mm)	Standard stroke	Max. stroke	Permi. stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Pneumatic parts : Cylinder

Standard cylinder, Mini cylinder, Compact cylinder, Slide cylinder, Pneumatic finger cylinder, Clamp cylinder, Stop cylinder, Rotary cylinder, Rodless cylinder, Guide cylinder,

Pneumatic parts : Solenoid valve

4V series solenoid valve,2/2way solenoid valve,high frequency valve,electromagnetic pulse valve,mechanical valve,foot pedal valve,manually valve, valve accessories,with superior quality, excellent service and competitive prices.

Pneumatic parts : fittngs , air source treatment , tube
