Home > Products > * Grinding Machine > MY7140A Grinding machine

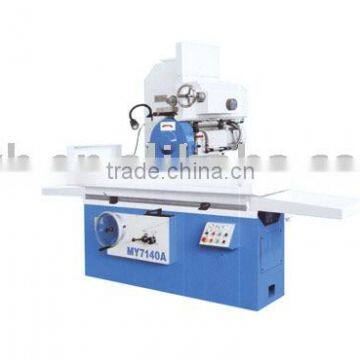

MY7140A Grinding machine
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Place of Origin | Shaanxi, China | |
| Brand Name | MY7140A | Model Number | Yuanhang |
Product Description
Specifications
1.CE,standard2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support
Model | MY7132A | MY7140A | |
Table Sizewidth × lengthmm | 320×1000 | 400×1000 | |
Max. distance from the spindle to the tablemm | 600 | 600 | |
Max. longitudinal travel of the tablemm | 1100 | 1100 | |
Max. transverse travel of grinding head mm | 390 | 470 | |
Max. vertical travel of grinding headmm | 400 | 400 | |
Grinding vertical feeding handwheel scale interval | Each spacemm | 0.005 | 0.005 |
Each turningmm | 0.5 | 0.5 | |
Grinding wheel sizemm | 400×50×203 | 400×50×203 | |
Grinding wheel speed r/min | 1440 | 1440 | |
General power of electrical machine KW | 9.2 | 9.2 | |
Grinding wheel principal axis electrical machine KW | 5.5 | 5.5 | |
oil pump electrical machineKW | 3 | 3 | |
The parallelism of machining surface to the base levelmm | 0.005/300 | 0.005/300 | |
Surface roughnessμm | Ra:0.63 | Ra:0.63 | |
Net/gross weight kg | 3700/4200 | 3850/4350 | |
Package sizelength × width × heightcm | 230×170×250 | 230×170×250 | |
