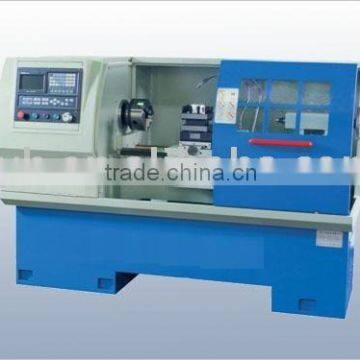

CK6136 CK6140 CNC Lathe

FOB Price

US$ 1,000 - 1,001 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.CE,standard
2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

Working Range CK6136 CK6140
Center height	180mm 208mm
Max swing dia over bed	360mm 236mm
Max swing dia skateboard	180mm 236mm
X-axis stroke	230mm
Z-axis stroke	750mm
Spindle
Dia. of spindle bore	38mm 50mm
Taper of spindle bore	Inner 1:20, Outer 1:4
Range of spindle speed	200-2800 R/min, 200-2500 R/min
Range of spindle stalls	stepless speed
Tool
Tool cross section	20x20mm
Station No. of gang tool	4-6
Motor Power
Main motor power	4kw(Frequency) 5.5kw(Frequency)
X-axis servo motor	0.84Kw(4Nm)
Z-axis servo motor	1.26Kw(6Nm)
Coolant pump motor	40kw
Cooling pump motor model	DB-12A
Feed
Min. setting of vertical feeding	0.001mm
Min. vertial feed stroke	0.001mm
Min. setting of horizontal feeding	0.001mm
Min. horizontal feed stroke	0.005mm
Vertical fast travel	6000R/min
Horizontal fast travel	4000R/min
Vertical feed range	2-2000R/min
Horizontal feed range	2-1000R/min
Machining Precision CK6136 CK6140
Roundness	0.003mm 0.005mm
Cylindricity	0.006mm
Smooth and clean	0.8-1.6
Main Function of CNC Control
Axes controlled	2
Axes simultaneously moved	2
Others
Gross weight	2080kg 2120kg
Net weight	2000kg 2040kg
Machine size	2145x1075x1450mm
Accessories
Three-jaw chuck	1 pc
Accessorial tool	1 set
System manual	1 pc
User Manual	1 pc
Certificates	1 pc
