Home > Products > Board > Huawei CR5D0EKGFA70 40-Port 100/1000Base-X-SFP HUAWEI NE40-X3 NE40-X8 NE40E-X16 NE80E
Huawei CR5D0EKGFA70 40-Port 100/1000Base-X-SFP HUAWEI NE40-X3 NE40-X8 NE40E-X16 NE80E
- Beijing

You May Like
-


Huawei CR5D00EMGF70 2-port 10GBase LAN / WAN-XFP and 24-port 100 / 1000Base-X-SF for Huawei NE40E-X3 NE40E-X8 NE40E-X16 NE80E
 -


Huawei NE40E-X3 NE40E-X8 CR53-P10-2xPOS/STM16-SFP CR53-P10-1xPOS/STM16-SFP RouterOrdering Information Item Description NE40E-X1
 -


Huawei CR5DL2XEEG7A 2-port 10GBase LAN / WAN-XFP and 20port 100 / 1000Base-X-SF for Huawei NE40E-X3 NE40E-X8 NE40E-X16 NE80E
 -


HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C
 -


Huawei CR5DVSUI201A VSUI-20-A ,Huawei NE40E-X3 NE40E-X8 NE40E-X16 NE80E
 -


HUAWEI NE Series Quidway NIB NE40E-X8 CR5D0SRUA470

Product Details
| Products Status | Stock | Type | Wired | |
| Application | Enterprise | Function | Firewall, QoS, VPN | |
| LAN Ports | Other | WAN Ports | Other | |
| Certification | ROHS | Brand Name | HUAWEI | |
| Model Number | CR5D0EKGFA70 | Place of Origin | Beijing, China |
Product Description

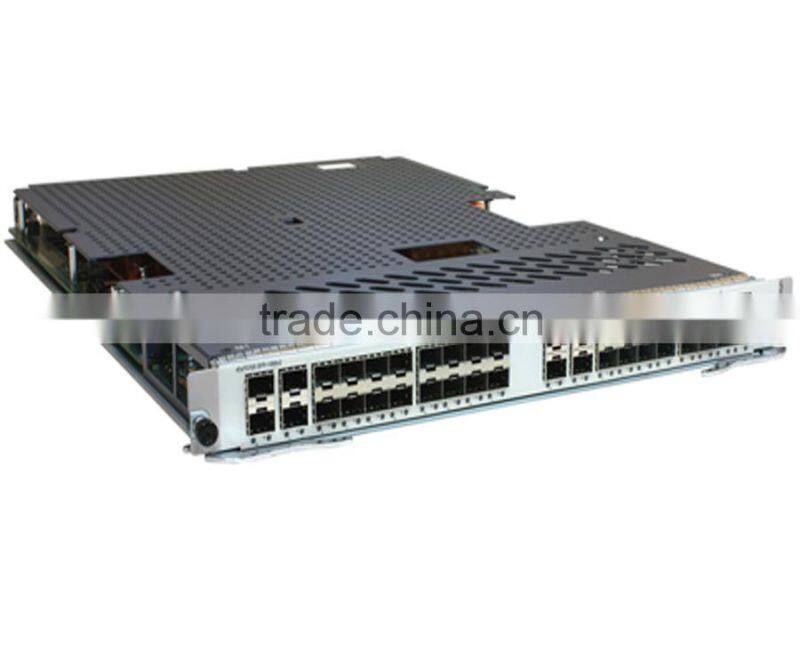

Product Picture:
Product specifications
Item  | NE40E-X16A  | NE40E-X16  | NE40E-X8A  | NE40E-X8  | NE40E-X3  |
Number of Slots  | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs  | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs  | 12 slots, including 2 SRUs (1:1 backup), 2 SFUs (3+1 backup), and 8 LPUs  | 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs  | 5 slots (for 3 LPUs and 2 MPUs)  |
Dimensions (W x D x H)  | 442 mm x 650 mm x 1,778 mm (40U)  | 442 mm x 650 mm x 1,420 mm (32U)  | 442 mm x 650 mm x 934 mm (21U)  | 442 mm x 650 mm x 620 mm (14 U)  | 442 mm x 650 mm x 175 mm (DC, 4U) 442 mm x 650 mm x 220 mm (AC, 5U)  |
Power Consumption (in full configuration)  | 9,040 W (480G)  | 4,610W (120G) 7,970W (240G)  | 4,770W (480G)  | 2,340W (120G) 4,100W (240G)  | 1,070W (AC) 920W (DC)  |
Weight (in full configuration)  | 356 kg (480G)  | 246 kg (120G) 279 kg (240G)  | 186 kg (480G)  | 119 kg (120G) 136 kg (240G)  | 42 kg (DC) 52 kg (AC)  |
IPv4  |
  | ||||
IPv6  | |||||
MPLS  | |||||
Layer 2 Features  |
  | ||||
Reliability  |
  | ||||
QoS  | |||||
OAM  | |||||
Multicast  | |||||
Security  | |||||
Value-added Services  | |||||
Environment Requirements  | |||||
Ordering information
Item  | Description  |
NE40E-X16 Basic Configuration  | NE40E-X16 Integrated Chassis Components (Including 8 DC Power)  |
Main Processing Unit B4  | |
200 Gbit/s Switch Fabric Unit B (SFUI-200-B)  | |
40 Gbit/s Switch Fabric Unit B  | |
NE40E-X8 Basic Configuration  | NE40E-X8 Integrated Chassis Components (Including 4 DC Power)  |
Switch and Route Processing Unit A5  | |
200 Gbit/s Switch Fabric Unit C (SFUI-200-C)  | |
40 Gbit/s Switch Fabric Unit C  | |
NE40E-X3 Basic Configuration  | Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power  |
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power  | |
Main Processing Unit D  | |
Main Processing Unit D2  | |
40G Line Card  | Flexible Card Line Processing Unit (LPUF-40,2 sub-slots) A  |
2-Port 10G Base LAN/WAN-XFP Flexible Card (P40)  | |
20-Port 100/1,000 Base-X-SFP Flexible Card (P40)  | |
2-Port 10G Base LAN/WAN-XFP Flexible Card B (P40-B)  | |
20-Port 100/1,000 Base-X-SFP Flexible Card B (P40-B)  | |
2-Port 10G Base LAN/WAN-XFP Flexible Card A (P40-A, Supports 1588v2)  | |
20-Port 100/1,000 Base-X-SFP Flexible Card A (P40-A, Supports 1588v2)  | |
20-Port 10/100/1,000 Base-RJ45 Flexible Card (P40)  | |
4-Port 10G Base LAN/WAN-XFP Flexible Card (P40, Occupies one sub-slot)  | |
8-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)  | |
4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)  | |
48-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)  | |
2-Port 10G Base LAN/WAN-XFP+24-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)  | |
4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)  | |
40-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41 Supports 1588v2)  | |
2-Port 10G Base LAN/WAN-XFP+20-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)  |
Package information: carton package with Huawei original package
 1.We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
