2amp 50V-100v RECTIFIER DIODE

FOB Price

US$ 0.001 - 0.01 / Box

1 Box(Min. Order)

Port ShangHai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	CY
Model Number	1A1 THRU 1A7	Type	Rectifier Diode
Package Type	Through Hole	Max. Forward Voltage	1 V
Max. Reverse Voltage	50V THRU 1000 V	Max. Forward Current	2 A
Max. Reverse Current	5 μA

Product Description

Main Product

Silicon Rectifier Diode Fast Recovery Rectifier Diode High Efficiency Rectifier Diode

Ultra Fast Rectifier Diode Super Fast Rectifier Diode Schottky Rectifier Diode

Bridge Rectifier Switching Diode Zener Diode TVS Diode DIAC

Main Customer

Product Description

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Construction utilizes void-free molded plastic technique
Low reverse leakage

Low forward voltage drop
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Electrical Characteristics

Packaging & Shipping

TYPE	Maximum Peak Reverse Voltage	Maximum Average Rectified Current	Maximum Peak Forward Surge Current	Maximum Forward Voltage		Maximum Reverse Current	Case Style
	VRRM	IAV	IFSM	VF@IF		IR@TA=25℃
	V	A	A	V	A	μA
RL201	50	2	70	1	2	5	DO-15
RL202	100	2	70	1	2	5	DO-15
RL203	200	2	70	1	2	5	DO-15
RL204	400	2	70	1	2	5	DO-15
RL205	600	2	70	1	2	5	DO-15
RL206	800	2	70	1	2	5	DO-15
RL207	1000	2	70	1	2	5	DO-15

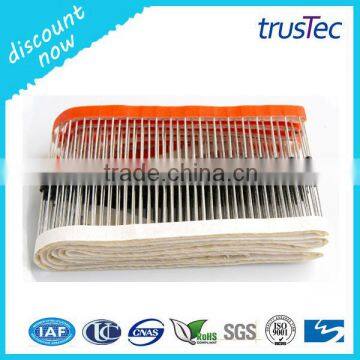

Tape&Box Packing Detail

Package	QTY Per Box	Inner Box Size	Carton Size	QTY Per Carton	Gross Weight
Package	(pcs)	(mm)	(mm)	(pcs)	(kg)
DO-15	500	1898121	443215250	25000	13

Water Proof & Moisture Proof Packing

Shipping Service

1. We will ship your order within 7-15 working days after the order confirmation.
2. We can ship via your TNT/DHL/UPS/Fedex account.

3. FOB/CIF/CNF.

1. Free Sample.

2. CY/ MIC/ OEM.

3. Payment Terms: 100% TT before shipment basing on FOB terms.

30% TT advanced payment, 70% TT against BL copy on CNF terms.

4. We can lower invoice goods value to reduce your import tax for the customs.

5. Test report provided for each shipping.
