Home > Products > Taper Chisel Bit > 34mm 7 degree tungsten carbide taper shank drill bit

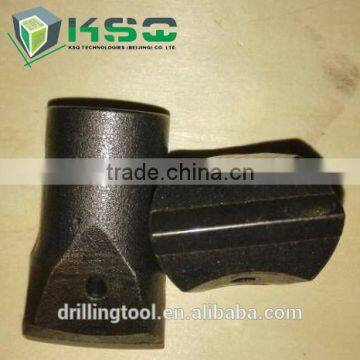

34mm 7 degree tungsten carbide taper shank drill bit
- 30000 Piece / Pieces per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
chisel rock bit diameter 34 mm / mining chisel rock bit
-
Tapered Rock Drill Chisel Bit , Cross Bit , Button Bit for Ore Mining
-
Taper 7 degree chisel bit, 32mm 34mm 36mm 38mm 40mm 42mm for small hole drilling
-
chisel bit
-
Taperd tools 7 degree - chisel bit for small hole rock drill service
-
7 degree Oblique chipways chisel bit - taper rock drill
Product Details
Place of Origin | Shandong, China | Brand Name | MIROC | |
Model Number | taper shank drill bit | Type | Other, Drill Bit, taper shank drill bit | |
Material | Other, Tungsten Carbide, Tungsten carbide and high strength alloy steel | Use | Other, Metal Drilling, Well drilling,mining drilling,ore drilling |
Product Description
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Tapered drilling tools Types | Diameter (mm) | Taper Angle (Degree) | Skirt | Weight (kg) |
Tapered chisel bits | 26-80mm | 7°,11°,12° | Normal, Length | 0.15 - 0.45 |
Tapered cross bits | 32-60mm | Normal, Length | 0.18 - 0.7 | |
Tapered button bits | 30-55mm | Normal, Length | 0.2 - 0.5 |
Button bit and Insert types
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Applications
• Underground mining
• Dimensional Stone Industry
• Tunneling,quarrying
Feature
1.tapered cross bits connect with tapered drill rod for drilling holes
2.Stale and mature welding technology ensure good quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
reliable and very cost-effective
Specification of tapered chisel bits
Part Number | Product Code and Brief Description | Bit Diameter (mm) | Bit Diameter (inch) | Tip Size (W x H, mm) | Weight (kg) |
4148300123 | FC38-7D-23, 7° Taper Flat Chipways Chisel Bit | 38 | 1 1/2 | 16 x 10 | 0.36 |
4148300124 | FC40-7D-23, 7° Taper Flat Chipways Chisel Bit | 40 | 1 4/7 | 16 x 10 | 0.38 |
4148300125 | FC41-7D-23, 7° Taper Flat Chipways Chisel Bit | 41 | 1 3/5 | 16 x 10 | 0.41 |
4148300126 | FC42-7D-23, 7° Taper Flat Chipways Chisel Bit | 42 | 1 2/3 | 16 x 10 | 0.43 |
4148300127 | FC45-7D-23, 7° Taper Flat Chipways Chisel Bit | 45 | 1 7/9 | 22 x 16 x 10 | 0.6 |
4148300128 | FC46-7D-25, 7° Taper Flat Chipways Chisel Bit | 46 | 1 4/5 | 22 x 16 x 10 | 0.61 |
4148300129 | FC48-7D-25, 7° Taper Flat Chipways Chisel Bit | 48 | 1 8/9 | 22 x 16 x 10 | 0.63 |
4148300130 | FC50-7D-25, 7° Taper Flat Chipways Chisel Bit | 50 | 2 | 22 x 16 x 10 | 0.65 |
4148300131 | FC56-7D-25, 7° Taper Flat Chipways Chisel Bit | 56 | 2 1/5 | 24 x 16 x 10 | 0.82 |
4148300132 | FC60-7D-25, 7° Taper Flat Chipways Chisel Bit | 60 | 2 1/3 | 26 x 16 x 10 | 0.91 |
4148300133 | FC65-7D-25, 7° Taper Flat Chipways Chisel Bit | 65 | 2 5/9 | 26 x 16 x 10 | 1.12 |
4148300134 | FC80-7D-25, 7° Taper Flat Chipways Chisel Bit | 80 | 3 1/7 | 36 x 16 x 10 | 1.4 |
Packaging:Carton or Wooden Box
