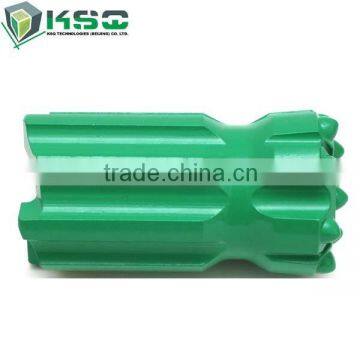

T38 Retrac Rock Drill Bit, Ballistic Buttons

• Description:
  • This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55MPa to 165MPa compressive strength)
  • Featuring ballistic tungsten carbide inserts that is known to have high penetration rate, but has weak configuration against carbide fracture
• Applications:
  • Underground mining
  • Tunneling
• Quick detail:
  • Widely used drifting and tunneling
  • Bit face design is ideal for soft to medium rock formations
  • With retract wings to help guide the bit in and out of the hole
  • Effective in straight hole drilling
  • Featuring ballistic tungsten carbide inserts for high penetration rate
• Competitive advantages:
  • High grade tungsten carbide inserts
  • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

  • Part number	Bit diameter (mm)	Bit diameter (inch)	Front buttons (no x mm)	Gauge buttons (no x mm)	Angle	Front flushing holes	Side flushing holes	Weight (kg)	Product code and brief description
    4148300750	64	2 1/2	4x10	8x10	30°	2	-	2.2	R1264-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300751	64	2 1/2	3x10,  1x10	6x11	35°	3	-	2.2	R1064-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300752	70	2 3/4	4x11	8x11	40°	2	-	2.4	R1270-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300753	70	2 3/4	3x10,  1x10	6x13	35°	3	-	2.4	R1070-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300754	70	2 3/4	4x10, 1x10	8x11	35°	4	-	2.4	R1370-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300755	76	3	4x11	8x11	40°	2	-	3.3	-
    4148300756	76	3	4x11,  1x11	8x10	35°	4	-	3.3	R1376-T38-B-1, T38 Retrac Button Bit, Ballistic Buttons
    4148300757	76	3	4x11,  1x11	8x12	35°	4	-	3.3	R1376-T38-B-2, T38 Retrac Button Bit, Ballistic Buttons
    4148300758	89	3 1/2	4x13	8x13	40°	2	-	-	R1276-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300759	89	3 1/2	5x13	8x13	35°	2	-	-	R1389-T38-B, T38 Retrac Button Bit, Ballistic Buttons
    4148300760	89	3 1/2	6x11	8x12	35°	2	-	4.8	R1489-T38-B-1, T38 Retrac Button Bit, Ballistic Buttons
    4148300761	89	3 1/2	4x13,  1x11	8x13	35°	4	-	4.8	R1489-T38-B-2, T38 RetracButton Bit, Ballistic Buttons
    4148300762	89	3 1/2	4x13,  1x13	8x13	35°	4	-	4.8	R1389-T38-B, T38 Retrac Button Bit, Ballistic Buttons



  Packaging:Carton or Wooden Box
