Factory Price of Integral Drill Steel with tungsten carbide chisel bit For Mining

Chisel Bit Integral Rod/ Integral Drill Steel with tungsten carbide chisel bit

Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

Legnth: 400mm, 500mm, 600m, 800mm, 1200mm, 1600mm, 1800mm, 2000mm, 2400mm, 3200mm, 6400mm, 8000mm

Shank: Hex22x108mm, Hex19mmx108mm

What can you get from KSQ?

1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do

drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill steel,Integral drill rod

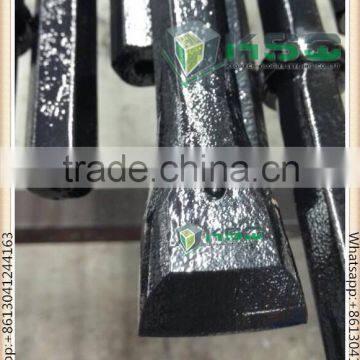

Integral drill rod with chisel bit

Name: Integral Drill Rod

Brand: KSQ Technologies

Original: China

The Hex22 Integral drills steels, Hex22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry.

Main Features

Shank: Hex22x108mm

Length: 400mm-8000mm

Chisel bit diameter: 26mm-41mm

Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.

Application

• Dimensional Stone Quarrying Industry

• Underground Mining
• Tunneling

Introduction

Integral Drill Steels are a fixed length with a shank at one end and a bit at the other ,and are able to drill to a depth equivalent to their effective length.The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.

To drill deep holes,the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.

To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.

The products in this brochure are the most cmmonly used.For other bit diameters and lengths.
