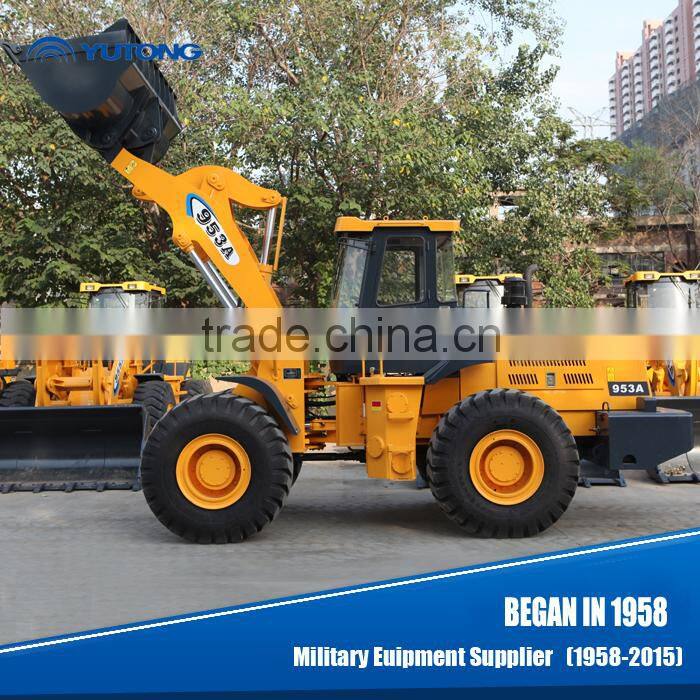

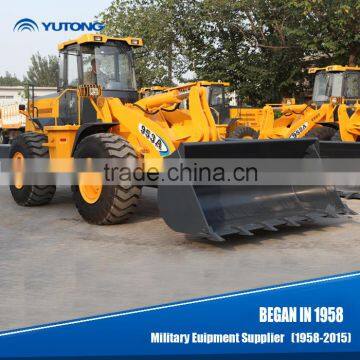

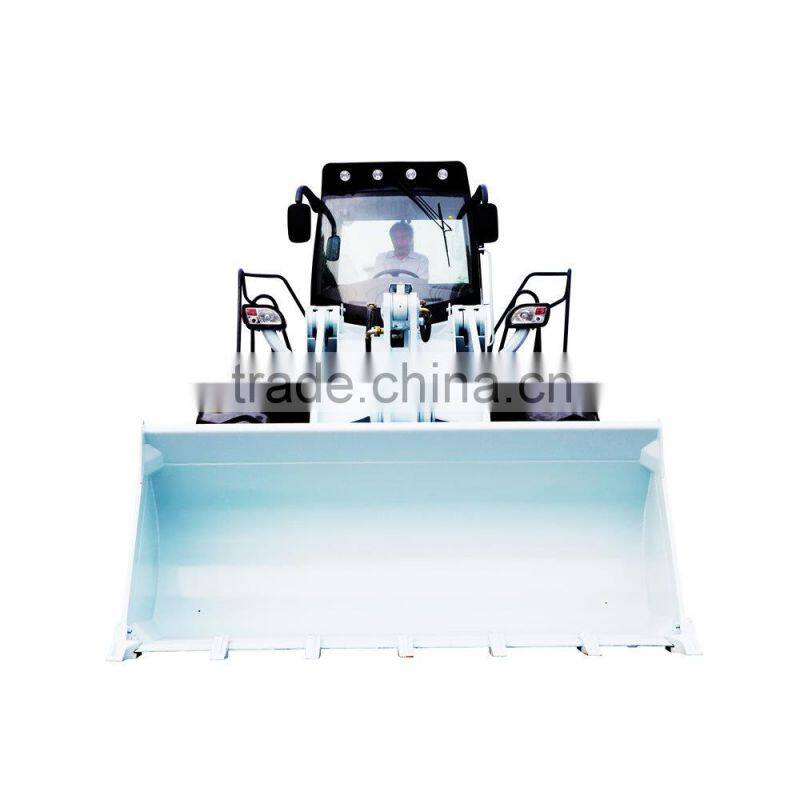

5 Ton Wheelloader China 953a

Rated load (t)

5

Rated capacity of bucket (m3)

2.7

Weight of complete machine (t)

17.0-17.4

Unloading height (mm)

3400

Unloading distance (mm)

1160

Sum time of three items (s)

9.8

Power of engine (kW)

162

Lowest fuel consumption (g / kW.h)

208

Maximum breakout force (kN)

170

Steering angle (º)

±36

Maximum traveling speed (km/h)

36

Minimum turning radius

6159

Outside of tire (mm)

6460

Outside of bucket at transport position(mm)

7260

Wheelbase (mm)

3000

Wheel track (mm)

2200

Overall dimension (length×width×height) (mm)

8400×3000×3480

Minimum ground clearance

461

Engine model

WD10G220E21

Rated power of engine (kw/hp)

162 /220

Rated speed of engine (rpm)

2200

Maximum torque of engine (N.m)

860

Engine displacement

China II

Model of gearbox

Hangzhou Advance Gearbox ZL50X54D

Gears of gearbox

Two forward gears and one backward gear

Model of drive axle

50M

Braking way

Caliper disc brake

Tire model

23.5-25 16PR

Pressure of working system (MPa)

17

Operation manner of working system

Flexible axle operation

A/C system

Warm air blower

Performance characteristics of 953A

953A wheel loader is the third generation of loader product produced independently by our company by using the latest technology and modern design. It adopts China’s common transmission system and reinforced frame and its excellent performance, high efficiency, low fuel consumption and reasonable economic cost have achieved the advanced level in the industry.

Strong power

Quick speed: lifting: 5.4 s; sum time of three items: 9.8s;

High flexibility: small turning radius, flexible steering;

Enough power: 162kW Weichai supercharged engine provides powerful power;

Full load: Extended bucket bottom, strong cut-in force, large bucket drawback angle and high full-load coefficient.

Excellent performance

Unloading height: the unloading height of the movable arm is 3400 mm, which can meet the demand of high-height unloading;

Strong force: 170kN breakout force and 150kN traction are applicable to the operating demands of various harsh working conditions;

Excellent wheelbase: wheelbase is short as 3000 mm, which makes the site applicability be optimal;

Good performance: optimized working device of single rocker arm, smooth motion and the bucket can lay flat automatically.

High reliability

Integral-type front frame, box beam rear frame and thickened plates, providing high strength;

Hinge point adopts double-row centering taper roller bearing, which makes the stress more reasonable and makes the steering more flexible.

Prolonged service life

Due to wear-resistant blades and bucket teeth, the service life of bucket becomes longer;

"C"-shaped protecting bush is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable.

Hydraulic joint adopts "Cone-O" double seal which is a kind of German technology, so the capacity of seepage-proofing and leakage-proof becomes better.

Driving becomes more comfortable

The cab, with large interior space and wide field of vision, makes driving become comfortable and safety;

Imported flexible shaft makes operation easy and flexible;

Air volume of the warm air blower is large. The warm air blower has functions of defrosting, so it makes the driving more comfortable;
