4 Inch DTH Hammer Equivalent to Atlas Copco Cop44 Hammer for Roc L6
- Tianjin Port Huangpu Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | DTH Hammer | Type | Other, Hammer Plate, With Foot Valve, No Foot Valve | |
| Machine Type | Drilling Tool | Certification | API | |
| Processing Type | Forging | Use | Other, Mining, quarrying, tunneling, Tunneling, Mining,Quarrying,Water Well |
Product Description
4 Inch DTH Hammer Equivalent to Atlas Copco Cop44 Hammer for Roc L6
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
Basic Information
| Items | Replacement Parts |
| 1 | Top sub |
| 2 | O-ring of top sub |
| 3 | Breakout Ring |
| 4 | Check Valve |
| 5 | Spring |
| 6 | Compression Buffer |
| 7 | Air Distributor |
| 8 | Internal cylinder |
| 9 | Piston |
| 10 | External cylinder |
| 11 | Guide sleeve |
| 12 | O-ring of stop ring |
| 13 | Stop ring |
| 14 | Breakout ring |
| 15 | Drive chunk |
| 16 | Drill bit |
| Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) | ||||
| φ110-φ135 | 1030(without bit) | 99 | 39(without bit) | ||||
| Working Pressure(Mpa) | Air Consumption(m³/min) | ||||||
| 1.2-2.0 | 1.0Mpa: 6m³/min | 1.8Mpa: 10m³/min | 2.4Mpa: 15m³/min | ||||
| Impact rate at 17 bar | Connection Rod Thread | Recommended Rotation Speed | Bit Shank | ||||
| 27HZ | API 2-3/8'' Reg | 25-40 r/min. | COP44/DHD340 | ||||
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• Valveless air distribution, more reliable.
• Simple design of the piston. Long life span.
• More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.
• Fewer internal parts, simple structure, less failure and easier to maintain.
• Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.

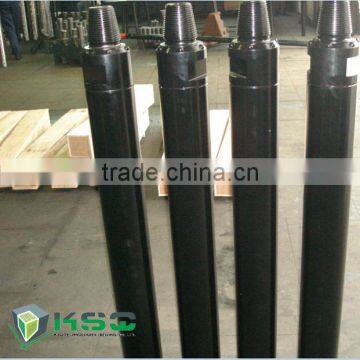

Photos
KSQ Related Rock Drilling Tools
(1) Integral Drill Rod–Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, coupling sleeve of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit.
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
Company Information
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
