Home > Products > DTH Hammer > 8" In the Hole Hammer and Button Bits / QL80 High Air Pressure DTH Hammer and Buttont Bits for Drilling Machines

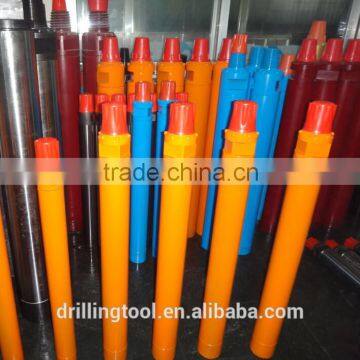

8" In the Hole Hammer and Button Bits / QL80 High Air Pressure DTH Hammer and Buttont Bits for Drilling Machines
- 35000 Set / Sets per Month
- FOB TianJin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3" In the Hole Hammer and Button Bits / DHD3.5 Low Air Pressure DTH Hammer and Buttont Bits for Drilling Machines
-
QL60 High Air Pressure Mining Rock Drill Bit for Tunneling
-
DHD340A Down Hole Hammers and Bits / 4 inch DTH Deep Hole Drill Bits for Water Well
-
Water Well Bits / Deep Hole Drill Bits / DTH350 DTH Hammer and Bitfor Sale
-
12 inch DTH Water Well Hammers and Drill Bits with NUMA Shank / Drill Bit for Water Well /
-
DTH rock drilling tools / DTD360 / QL60 Impact Drill for borehole
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | High air pressure dth hammer, All type | Type | Other, dth hammer | |
| Material | Other, Tungsten Carbide, 42CrNiMoV | Use | Other, tunneling/underground constrction/quarry |
Product Description
WhatsApp: 0086-150 0127 1163
SKYPE: xu.ruofei1
Specification
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Product Code and Brief Description | Flushing Holes | Diameter (mm) | Weight (kg) | Gauge Buttons ( No.x mm) | Front Buttons ( No. x mm) | DTH Hammer |
DTH65PQ | 1 | 68 - 72 | 1.5 | 4 x12 | 3 x 12 | DTH65 |
DTH75PQ | 3 | 75 - 77 | 2.4 | 5 x 12 | 3 x 12 | DTH70 |
DTH76PQ | 2 | 76 - 78 | 2.5 | 5 x 12 | 3 x 12 | DTH76 |
DTH76-78 | 2 | 78 - 82 | 2.6 | 5 x 12 | 3 x 12 | DTH76 |
DTH80PQ | 3 | 82 - 84 | 3 | 5 x 12 | 6 x 12 | DTH80, DTH80X |
DTH90A | 3 | 90 - 95 | 3.6 | 6 x 14 | 4 x 12 | DTH80, DTH80X |
DTH80XD-90 | 3 | 90 - 95 | 3.4 | 6 x 12 | 4 x 12 | DTH80XD |
DTH80-II-80 | 3 | 80 - 82 | 3 | 5 x 12 | 4 x 12 | DTH80-II |
DTH90B | 3 | 90 - 95 | 3.8 | 6 x 14 | 4 x 12 | DTH90, DTH90-I |
DTH90T1 | 2 | 90 - 95 | 3.6 | 6 x 14 | 1x12,3x12 (Spherical) | DTH90, DTH90-I |
DTH90T2 | 2 | 90 - 95 | 3.8 | 6 x 14 (Spherical) | 4 x 12 (Spherical) | DTH90, DTH90-I |
DTH90T3J | 3 | 90 - 95 | 3.6 | 6 x 14 (Ballistic) | 4 x 12 (Ballistic) | DTH90, DTH90-I |
Company Profile
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Contact Us
- KSQ Technologies (Beijing) Co., Ltd.
- Contact nameAileen Zhao Chat Now
- Phone86-10-60714361-8006
- AddressRm. 705, Unit 2, Floor 7, Building 6, Gulou South St., Chengbei St.
