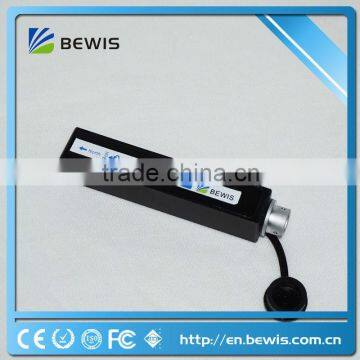

Bewis HEC365-232 High-performance 3D Electronic Compass

FOB Price

USD $600 - $650 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BEWIS
Model Number	HEC365	Usage	Position Sensor
Theory	Current Sensor	Output	Digital Sensor

Product Description

Designed by Bewis Sensing Technology LLC, HEC365-232 is High-performance 3D Electronic Compass .

Applications:

1. Satellite tracking
2. Petroleum geological logging
3. Optical range finder
4. Unmanned aerial vehicles
5. Combat equipment
6. Underwater navigation
7. Marine measurement
8. Robotic system

Performance Specifications
Parameters	Typical	Units
Heading accuracy (static, compass mode)	0.3°-0.5°	Deg RMS
Resolution	0.1	Deg RMS
Magnetometer Specifications
Parameters	Typical	Units
Calibrated Field Measurement Range	±1.5	Gauss
Magnetic Resolution	± 0.5	mGauss
Tilt Specifications
Parameters	Typical	Units
Pitch Accuracy	0.1°	Deg RMS
Pitch Accuracy	0.1º for pitch <65º 0.2º for pitch <80º 0.5 for pitch <86º	Deg RMS
Tilt Range	±90º pitch ±360º roll	Deg
Tilt Resolution	<0.01°	Deg
Mechanical Specifications
Parameters	Typical	Units
Dimensions (L x W x H)	1142020	mm
Weight	100	g
Mounting Options	Screw mounts/standoffs; horizontal
Connector	5-pin
I/O Specifications
Persaramet	Typical	Units
Latency from Power-On	< 50	mSec
Maximum Sample Rate	50	samples/sec
Communication Rate	2400 to 19200	baud
Output Formats	Binary Protocol
Power Specifications
Parameters	Typical	Units
Supply Voltage	5V	VDC
Current Draw (Continuous Output)	40 (Max)	mA
Current Draw (Continuous Output)	30 (TYP)	mA
Environmental Specifications
Persaramet	Typical	Units
Operating Temperature	– 40 to 85	°C
Storage Temperature	– 40 to 125	°C
Shock	50~3000 G , Half Sine Wave Shock with 2 drops at each level	G
Binary Protocol	Z-Axis, Skewed Block, at 1, 2 & 4 G rms @ 10±1000 KHz for 30 min
#d9d9d9	70°C with 95% R.H . for 168 hrs.
Calibration
Parameters	Typical	Units
Hard Iron Calibration	Yes
Soft Iron Calibration	Yes
User Calibration	Yes

Electrical interface
Line Color Function	RED	BLUE	BLACK	GREEN	YELLOW
	1	2	3	4	5
	DC 5V	NC	GND	RXD(B,D-)	TXD(A,D+)

Company Information

Our products are completely independent R & D and manufactured. Our research and development group

gather qualified talents of MEMS sensor field. And research staff accounts for 50% of the total number of

those talents. We also set up the inertial sensor Engineering Technology Research Center which is leaded

by 973 chief scientists. The members of Center have undertaken major national science and technology

projects many times including major national S&T program; National High-tech R&D Program of China

(863 Program); Innovation and Technology Commission (ITF-UIM-151); Study on semiconductor particle

detectors (state plan). The most of core team members own the experience of technology development and

research in foreign top micro nano electronics laboratory. The number of graduate education employees

account for 70%. 6 staff of R & D group are doctors who have experience of learning or working abroad.

FAQ

Q: What are the merits of your products?

A: We have more than 10 years’ experience of research and development sensor. Our products have been exported totechnology developed countries such as Europe, America and Japan. Our products have price advantage compared with foreign products.We are able to deliver the goods promptly and some goods are in stock, most of goods can be delivered in three workdays.

Q: How about the quality of your products?

A: Our Company has established research and development system dominated by international advanced IPD on the basis of inheritance and practice and insists on process change and management optimization. Benefiting from this system, the company can export products which can stand the market test and create profits for clients. We also establish product identification and testing center. To provide clients safer and more reliable products, we carry out extensive and further cooperation with the international leading research institutions and instrument manufacturers and use omni directionof user environments to have rigorous test of products before release. The company owns the country’s highest precision three-dimensional turntable to test our products and ensure product accuracy and resolution to meet the most demanding users.

Q: How much is your product IP protection level?

A: Our product IP protection level is IP67, IP6X means that no dust meets the standard requirements. IPX7 means defend socking. Socking into the water under define stress and time,the water quantity which will cause damage, should not allowed to enter. Detailed description will be seen in National Standard 4208. This level is high waterproof grade. Our products are at a depth of one meter environment, test one hour without any exception.

Q: Can your products operate normally in severe environment?

A: Our company is specialized in industrial product development research. All aspects of product protection, high and low temperature aging and the reliability indexes are rigorously tested. At present, our products can stably operate in various fields of industrial control, including the underground non digging machinery, underwater robots, Antarctic survey, oil drilling etc.

Q: How to deliver?

A: By courier like DHL,UPS, Fedex,TNT,EMS.

Q:Where does your factory locate, is it convenient to visit?

A:Our factory locates in Cixi city, Zhejiang province, very close to the high-way train station and the high-way entrance, only 40 minutes to Ningbo Lishe Airport, we can provide business vehicle to take you coming and departure.

Q: What’s your Payment term?

A: T/T or L/C or Paypal or Western union

30% deposit,the 70% balance before shipping!
