Home > Products > jute bag making machine > GN20-2 Jute Bag Overedging Machine

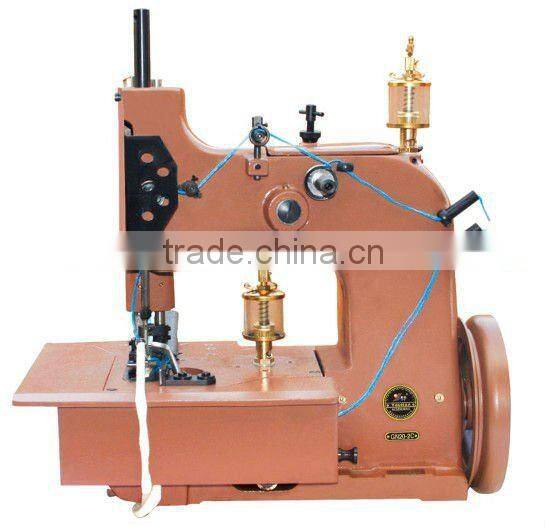

GN20-2 Jute Bag Overedging Machine
- TIANJIN
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Industrial Sewing Machine | |
| Place of Origin | Hebei, China | Brand Name | YOUTIAN | |
| Model Number | GN20-2 | Stitch Formation | Overlock Stitch | |
| Max. Sewing Speed | 1700r/min | Max. Sewing Thickness | 15mm | |
| Stitch Length | 7-16mm | Power | 370W | |
| Overall Dimensions | 51/51/33.5cm | Feed Mechanism | Other, feed dog |
Product Description
Specifications
1,GN20-2 jute bag overedging machine2,overdeging width 10-15mm
3,sewing ability 14mm
4,used for big bag and jute bag sewing
1,GN20-2 jute bag overedging machine
2,overdeging width 10-15mm
3,sewing ability 14mm
4,used for big bag and jute bag sewing
GN20-2 type 2-thread edging machine for bags-making is suitable for sewing up different kind of woven bags such as gunny-bag and/or PP/PE bags. It has a strong function to punch through and gives a durable quality. The edge width could be 10-16mm.If you wish, only change a few of the parts, it can also be used for sewing up edges ranging from 18mm to 20mm.
GN20-2C type 2-thread attachment strip edging machine for woven bag is suitable for sewing up different Kinds of PP/PE woven bags. Using this method, attachment strip can be added while sewing operation is on progress so that the steps of sewing up the attachment strip separately. This method is economical and practical method and features with nice-looking appearance.
Technicians
Stitch type | 503 |
Stitch range | 7-16mm |
Thread type | Polypropylene/chinlan |
Needle | GN20-300/33# |
Overedging width | 15mm(10mm available with special order) |
Thickness of material | 14mm |
Max.speed | 1400rpm |
Motor power | 370W |
