Cutting Disc Making Machine Manufacturers, Cutting Wheel Making Machine

 Contact Manager:Ludy Yang

 whatsapp: +86 18638287933

/

Introduction:

100-400mm revolving eight workstation automatic moulding press for fiber reforced thin resin bond cutting wheel.

Technical specification:
(a) Products specifications l:  100-400mm ,thickness1-8mm,parallel grinding wheel;

(b) Rating press:400 ton;

(c) Structure: disc revovlving eight workstation;

(d) Scrape raw material style: fix volume revolving switch;

(e) Control mode: PLC control, touch screen display;

(f) Capacity:14-16 seconds/per grinding wheel (about 1800-2050 discs/eight hours);

(g) Operators: four persons;

(h) Another descriptions: multi head drive turnplate.

 1.Automatic ceramic bond grinding wheel machine, Grindstone vitrified wheel making machine

/

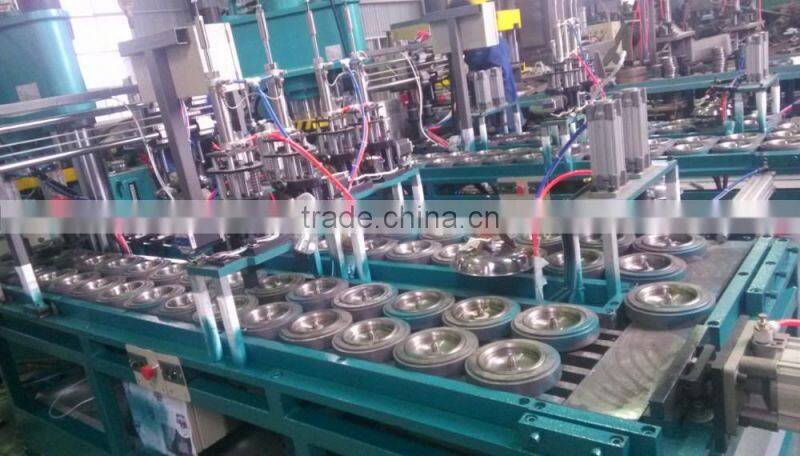

Grinding wheel  mould machine for fiber reforced thin resin bond cutting wheels and depressed center wheels

Technical specification:
(a) Products specifications: diameter 100-400mm ,thickness 5-600mm, flat, parallel, cymbals form, inter and outer net, paste brand etc different kinds cutting wheels and depressed center wheels;

(b) Rating press:315 ton, cast steel beam;

(c) Structure: pane pushing thirty six workstation;

(d) Scrape mode: fix volume revolving switch, electrical sloping plate slightly raise;

(e) Control mode: PLC control;

(f) Capacity: 7 seconds/ per grinding wheel (single head is about 4000-5000 discs/eight hours, double head is about 8000-10000 discs/eight hours );

(g) With pre-press function and cover board automatic convey;

(h) Operators:3 persons;

(i) Another descriptions: According to difference technics and products, this kinds machine can be made up to twenty four workstation, thirty two workstation etc.

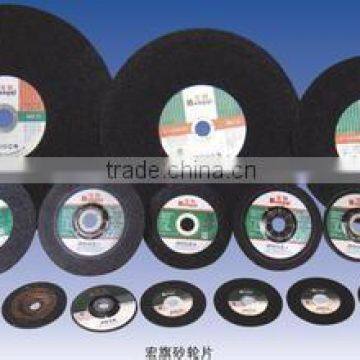

2.Resin cutting wheel making machine,

/

Products specifications: diameter 100-400mm ,thickness 1-8mm, flat, parallel, cymbals form, inter and outer net, paste brand etc different kinds cutting wheels and depressed center wheels

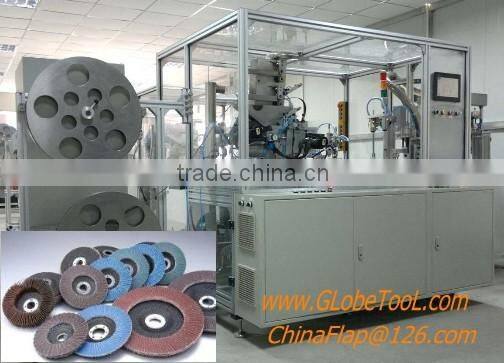

4. Automatic flap disc machine, flap disc making machine

Automatic Flap Disc Machine Details:

5. Abrasive Wire Wheel Machine,Steel Wire Disc Brush Making Machine
