Grinding Wheel Making Machine

 Contact Manager:Ludy Yang

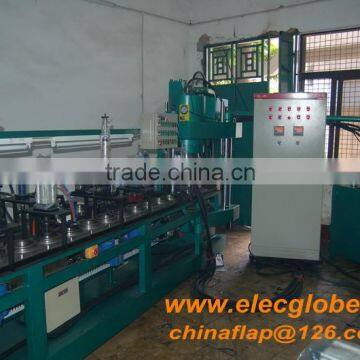

 1.Automatic grinding wheel machine, Grinding wheel making machine

/

Grinding wheel  mould machine for fiber reforced thin resin bond cutting wheels and depressed center wheels

Technical specification:

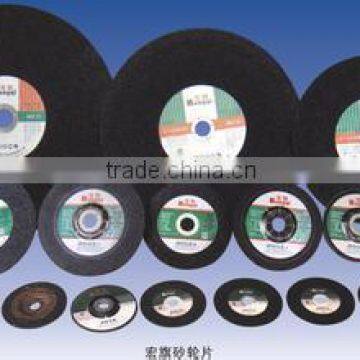

(a) Products specifications: diameter 100-400mm ,thickness 1-8mm, flat, parallel, cymbals form, inter and outer net, paste brand etc different kinds cutting wheels and depressed center wheels;

(b) Rating press:315 ton, cast steel beam;

(c) Structure: pane pushing thirty six workstation;

(d) Scrape mode: fix volume revolving switch, electrical sloping plate slightly raise;

(e) Control mode: PLC control;

(f) Capacity: 7 seconds/ per grinding wheel (single head is about 4000-5000 discs/eight hours, double head is about 8000-10000 discs/eight hours );

(g) With pre-press function and cover board automatic convey;

(h) Operators:3 persons;

(i) Another descriptions: According to difference technics and products, this kinds machine can be made up to twenty four workstation, thirty two workstation etc.

Abrasives cutting wheel making machine,

/

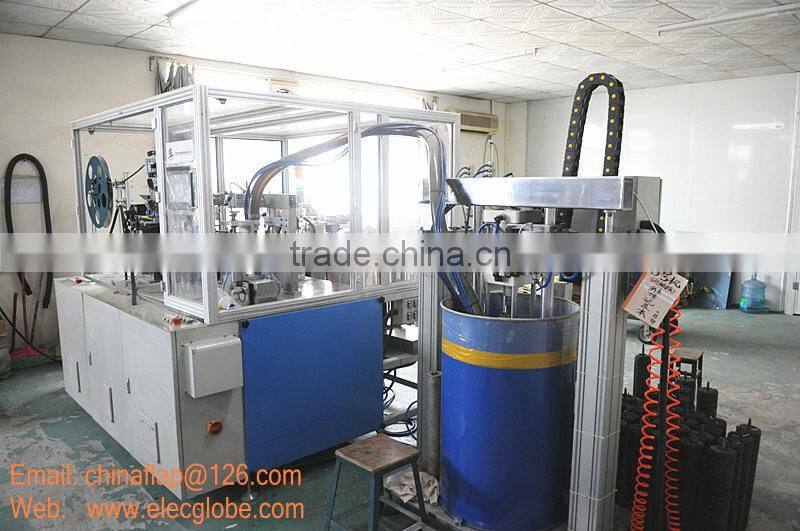

3. Automatic flap disc machine, flap disc making machine

Automatic Flap Disc Machine Details:

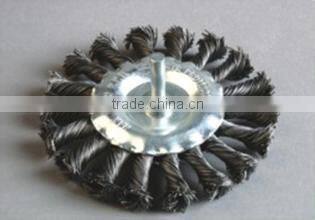

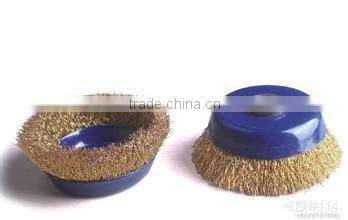

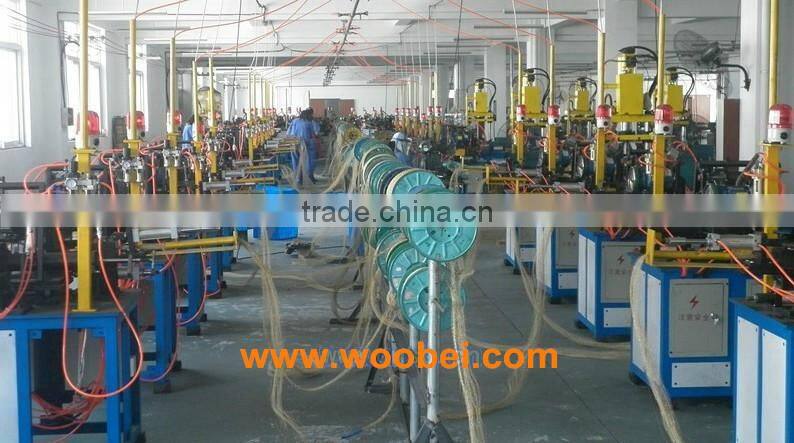

4. Abrasive Wire Wheel Machine,Steel Wire Disc Brush Making Machine
