UHF Passive Tag
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | UHF Passive Tag |
Product Description

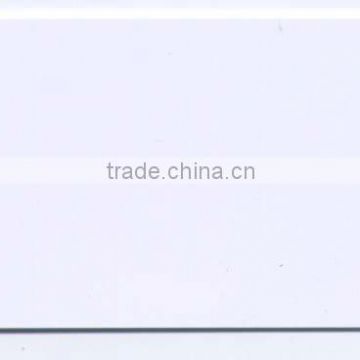

915MHz or 868MHz UHF White PVC Passive Tag
Features:
Customized working frequency
FHSS working mode
Excellent anti-collision performance
Online programmability and fast reading/write rate
Embedded chip is designed by special process treatment, with good anti UV irradiation performance
Specifications:
Operating frequency: 860MHz~960MHz (can be customized)
Protocol standard: ISO18000-6B /ISO18000-6C(EPC Class1 GEN2)
Chip type:
ISO18000-6B: UCODE HSL,
ISO18000-6C: UCODE EPC GEN2
Data storage:
ISO18000-6B: UID: 64 bit; User: 1728 bit
ISO18000-6C: EPC: 96 bit; TID: 64 bit; User: 1728 bit; Access password: 32 bit; Kill password: 32 bit
Life time: 100000 times(25°C)
Data store period: 10 years(25°C)
Reading distance: 8~10m(work with 1W power reader and 12dBi antenna)
Working temperature: -20°C~+70°C
Storage temperature: -40°C~+85°C
Humidity: 10%~75%
Size: 85.4mm*54mm*1mm
Installation: Fixed on objects’ surface by cassette
Notes: In order to get the best recognition performance, please keep the tag direction the same as antenna’s polarization direction when using
Application:
Intelligent weighting
Highway (Bridge) toll collection management
License plate anti-fake identification and vehicle marshalling scheduling management
Intelligent parking
Vehicle inspection management
Warehouse management and logistics
Asset management
