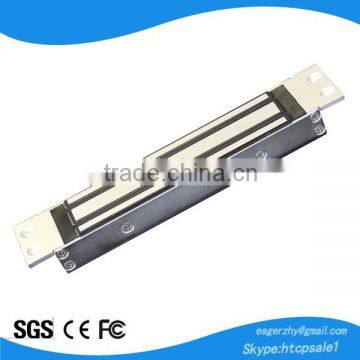

280kg 600Lbs Electric Magnetic Lock with Mortise Mount
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Single Door 280kg 600Lbs Electric Magnetic Electromagnetic Lock
-
Single Door Electric Magnetic Lock with 180kg 350Lbs Holding Force
-
180kg 350Lbs Single Door Biometric Door Locks
-
Single Door Magnetic Lock with Signal
-
350Kg 800Lbs Single Door Electric Magnetic Hidden Door Lock
-
Single Door Electric Magnetic Lock with 280kg and 600Lbs Holding Force
Product Details
Place of Origin | Guangdong, China | Brand Name | Techcrepower | |
Model Number | EL-280M-S Electric Magnetic Lock with Mortise Mount |
Product Description
Specifications:
280kg 600Lbs Electric Magnetic Lock with Mortise Mount
1. Holding Force:280kg(600Lbs)
2.Voltage:12 or 24VDC
3. Single Door:Yes
4. Reasonable Price and high quality
Electric Magnetic Lock Introduction:
EL-280M-S single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and
easy to install . Accessories for inswing door,frameless glass door,narrow doorframe door and so on are available.
Electric Magnetic Lock Spec:
Product Parameter | Parameter Description |
Size | 231.6Lx41.6Wx24.5H(mm) |
Armature Plate Dimension | 180Lx38Wx11H(mm) |
Holding Force | 280kg(600Lbs) |
Input Voltage | 12 or 24VDC |
Current | 12V/500mA or 24V/250mA |
Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp | ≤+20℃ |
Operating Temp | -10~+55℃(14-131F) |
Humidity | 0~90%(non-condensing) |
Cover Finish | Anodized aluminum |
Lock Finish | Zinc |
Armature Plate Finish | Zinc |
Weight | 2.1kg |
Advantage:
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
