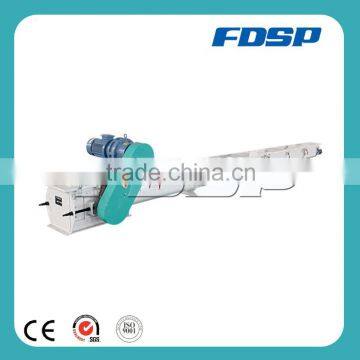

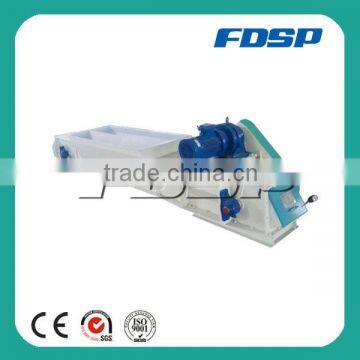

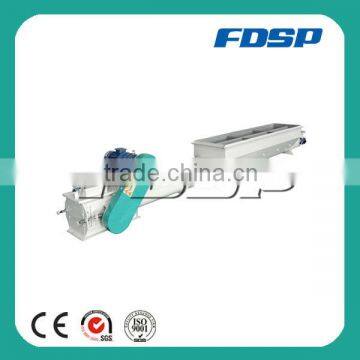

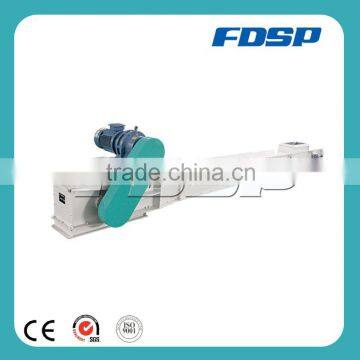

FDSP Conveying Equipment TGSU/TGSS Scraper Conveyor

Item

         Conveying equipment

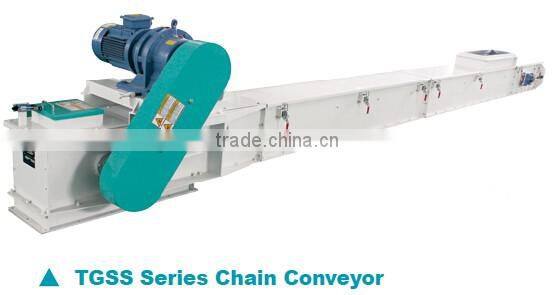

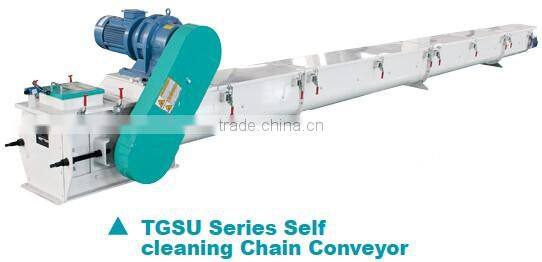

TGSU/TGSS Series Scraper Conveyor

Discription

Our TGSS and TGSU series en-masse conveyors are well constructed and diversified. There are different types can be chosen according to different raw materials. The conveyors are widely applied to grain storage, oil processing, feed processing, mine, cement, chemical, and metallurgy industries etc.

Main scraper types

Flat scraper, U shaped scraper and airtight scraper etc.

Head pulley and tail pulley are dissection assembly type, whose rail is fixed by bolts, which is easy for maintenance and replacement.

Chain types

Weld cranked link chain, die forging chain, bush roller chain

Safety Protection device

According to customers’ requirements and working condition, there are optional devices which include dust explosion proof motor, backstop, fluid coupling, blockage alarming devices, stall alarming device and chain-breakage proof device.

Packing Details

 Iron case or iron pallet etc

MOQ

 1 Set

Payment

 L/C, T/T, Western Union, Money Gram as client require

Warranty

 One year warranty and all around after-sale service.

Type

Trough width

(mm)

Chain speed

(mm)

Conveying capacity

(t/h)

Material layer height

(mm)

Applicable to

 convey powder

 TGSS16

160

0.3-0.5

4-8

220

TGSS20

200

0.3-0.6

8-15

280

TGSS25

250

0.3-0.6

15-30

280

TGSS32

320

0.3-0.7

30-50

340

TGSS40

400

0.3-0.7

50-80

430

TGSS50

500

0.3-0.75

80-120

540

 Type

Trough width

(mm)

Chain speed (mm)

Conveying capacity        (ton/hour)

Material layer height

            (mm)

Applicable to convey pellets

TGSS16

160

0.3-0.5

5-20

220

TGSS20

200

0.3-0.6

10-30

280

TGSS25

250

0.3-0.6

20-50

280

TGSS32

320

0.3-0.7

30-100

340

TGSS40

400

0.3-0.7

50-200

430

TGSS42

420

0.3-0.7

80-250

450

TGSS50

500

0.3-0.75

100-300

540

TGSS63

630

0.3-0.75

200-500

630

TGSS80

800

0.3-0.8

300-800

720

TGSS100

1000

0.3-0.9

500-1000

720

TGSS120

1200

0.3-0.9

800-1350

720

TGSS160

1600

0.3-0.9

1000-2000

720
