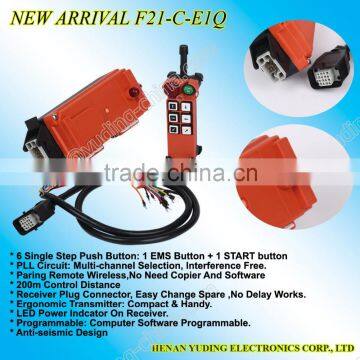

New arrival PLL remote control F21-C-E1Q Wireless remote control

TX Model

F21-C-E1Q-TX

TX Size

about 15.6*5.6*4.9cm

TX Weight

about 211g(without Batteries)

Housing material

glass fiber-reinforced nylon-6

Protection

Degree

IP65

Temperature

Rating

-35°C ~ +85°C(Regardless of the

battery temperature tolerance)

TX power

Supply

Two 1.5 volts Batteries(AA Size)

Number of

buttons

6 Single speed buttons,1 START

button,1 mushroom button

Button

Marking

arrow tip

I.D.Code

4.3 billion

Voltage

Warning

TX Red LED will flash slowly

when the volts under 2.2V,

and unable to start TX under 1.8V.

Operating

Frequency

425.5925-446.9925MHz

Channel

Spacing

0.2675MHz

Channel

80CH/80CH

RF Power

<10DBm

Fault

Detection

TX Red LED is flashing quickly:

1.Not in the correct way to start;

2.One of the pushbutton is jammed.

TX LED will flash slowly:

1.Please change two new batteries

RX Model

F21-C-E1Q-RX

RX Size

21.4x8.6x7.9cm

RX Weight

about673g

Housing material

glass fiber-reinforced nylon-6

Protection

Degree

IP65

Temperature

Rating

-35°C ~ +85°C

RX power

Supply

AC380V,AC36V,AC220V,AC110V,

AC48V,AC24V,AC12V/DC12V,

AC380V/AC220V(50-60Hz)

Number of

buttons

6 Relays control functions,

1 relay control EMS and 1 relay

reserve

Output

Relays

5Amp Omniseal Relays

(AC250V/10A Relays ,10Amp

fuse)

I.D.Code

4.3 billion

Operating

Frequency

425.5925-446.9925MHz

Channel

Spacing

0.2675MHz

Channel

80CH/80CH

Sensitivity

>-110DBm

Interface

aviation connector
