Home > Products > New Products > SPIRAL PAPER TUBE MACHINE HD-50200
SPIRAL PAPER TUBE MACHINE HD-50200
Negotiable
/ Set
1 Set(Min. Order)
- Shenzhen
- T/T
You May Like
-
Automatic Tape Slitting and Rewinding Machine
-
Multifunctional Automatic Film Slitting and Rewinding Machine
-
SKPJ1676 Automatic Parallel Fireworks Machine Tube Rolling Machine With Tube Cutter
-
Spiral Paper Tube Making Machine SKPJ16-102
-
Automatic Spiral Paper Tube Making Machine With on Line Tube Cutter, Making POY /DTY Paper Tube
-
Rewinding Machine JHJ-FJJ1300
Product Details
| Condition | New | Packaging Type | Other, paper tubes | |
| Packaging Material | Paper | Automatic Grade | Automatic | |
| Driven Type | Pneumatic | Place of Origin | Jiangxi, China |
Product Description
Specifications

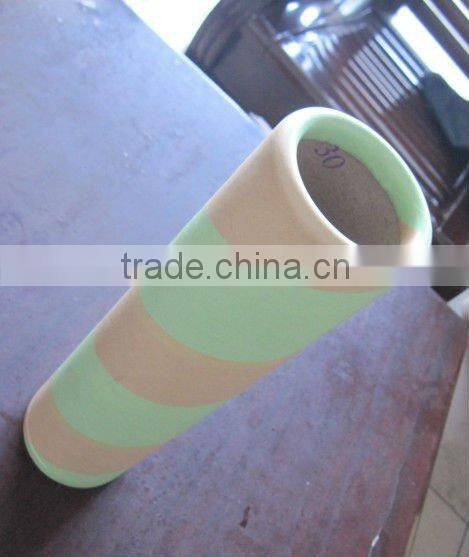

Automatic spiral paper tube machineFunction: making POY/DTY textile paper tubes
Inverter, energy saving
Diameter:50-200mm
HD-50200 Automatic sprial paper tube machine, high working efficiency, energy saving!
Brief introduction:
HD-50200 PAPER TUBE MACHINE is mainly for producting POY/DTY textil paper tubes.
| Model | PAPER TUBE MACHINE HD-50200 | ||
| Technical parameter | Control system | ||
| Paper layers | 3-20 plies | ||
| Max-diameter | 200mm | ||
| Min-diameter | 50mm | ||
| Max-thickness | 15mm | Inverter | Sifang 7.5kw |
| Min-thickness | 0.6mm | Actuator | CHNT |
| Shaft fixed type | Six screws fixation | Signal element | Omron |
| Rewinder head | Four head double belt | Pneumatic element | AIRTAC |
| Cutting way | Three circular-blades cutting | Synchronization Control | Automatical |
| Gluing way | Double side | Synchronization control cutting system | No |
| Operator | 1-3person | Fixing length way | Infrared |
| Productive speed | 3-20m/min | Outfit component | |
| Speed control | Inverter | Auto falling tube-shelf | Yes |
| Input power | 380V three phase four lines | Belt angle | Manual adjust |
| Belt adjust | Manual adjust | ||
| Size(mm) | Host swing angle | No | |
| Mainframe :L*W*H | 4200mm*1800mm*1500mm | Auto giving glue | Pneumatic Diaphragm |
| Total area :L*W | 12000mm*4000mm | Auto-feed lubricating oil | Optional |
| Wheel hub diameter | 215mm | Paper-holder type | Four-arm fission paper shelf |
| Wheel hub height | 300mm/450mm | Rolling belt | film-base |
| Min-tread | 750mm | Tension adjustment | Manual adjust |
| Max-tread | 900mm | Free component | |
| Total weight | About 2800kg | Winding core shaft | 1 pcs |
| Drive system | Air compressor | No | |
| Host power | 11KW wannan | Useful tool | 1set |
| Host speed | 1400r/min | ||
| Wheel hub max-rotate speed | 80r/min | ||
| Wheel hub output torque | 3000N.m | ||
| Speed reducer model | WPO1D Zhengyu | ||
| Gear box model | 135 | ||
| Wheel hub drive | 4 wheel drive | ||
| Bearing | Wan Xiang product | ||
HD-50200
Contact Us
- Jiangxi New Times Machinery Automation Manufacturing Co., Ltd.
- Contact nameCici Ding Chat Now
- Phone86-799-3678262
- Address(Cartoon Industrial Park), Penggao Town, Shangli County, Pingxiang, Jiangxi
