12.5kw diesel generator single phase
- Chongqing
- T/T
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | YOHOU | |
| Model Number | YH14000MED | Output Type | AC Single Phase | |
| Speed | 3000rpm/3600rpm | Frequency | 50Hz 60Hz | |
| Rated Power | 12.5KW | Rated Voltage | 220v 230v 380v 400v 415v |
Product Description
12.5kw diesel generator single phase
Advantage
1. 12.5kw diesel generator single phase.
2. 50Hz/60Hz 220V 230V 380V, 8KVA 12KVA 15KVA diesel generator available.
3. Doubel cylinder engine.
4 With permanent magnet alternator.
5. With amperemeter, frequency meter, voltmeter, counter, circuit breaker.
6. Voltage optional.
7. 15KVA DIESEL GENERATOR.
Technical Parameter
| Model | YH14000MED | ||
| Generator | Excitation System | Rare-earth Permanent Magnet | |
| Frequency(Hz) | 50 | 60 | |
| Voltage Rating(V) (optional) | 110;115;120; 220;230;240; | 100;110;120; 127;220;230 | |
| Rated Power(KW) | 12 | 13 | |
| Max. Load(KW) | 13 | 14 | |
| Rated Capacity (kvA) | 12 | 13 | |
| Power Factor COSφ | 1 | ||
| Phase | single phase | ||
| Start type | Electric start | ||
| Storage Battery | 12V24AH | ||
| Engine | Engine Model | HH 292F, 2 cylinder, 4 strokes, | |
| Engine Power(HP) | 21 | ||
| Engine Speed(r/min) | 3000 | 3600 | |
| Cooled System | Air-cooled | ||
| Fuel Type | Normal temperaturer 0# diesel/ low temperaturer -20# diesel | ||
| Fuel Tank Capacity(L) | 26 | ||
| Displacement(CC) | 954 | ||
| Others | Ingress Protection | IP23 | |
| Noise Level @ 7m(dBA) | ≤88 | ||
| L×W×H(mm) | 915×615×840 | ||
| Weight(kg) | 188 | ||
| Accessories | Oil Alert | Yes | |
| Frequency Meter | Yes | ||
| Hour Meter | Yes | ||
| Terminals | Yes | ||
| Electric Starter | Yes | ||
| Non-fuse Circuit Breaker | Yes | ||
| 12V DC Output | Optional | ||
| Fuel Gauge | Yes | ||
| Wheels | No | ||
| Storage Battery | Optional | ||
| Diesel Genset Series | ||||||
| Diesel Gnerator Model | Engine Model | Rated Power (50Hz) | Max. Power (50Hz) | Rated Power (60Hz) | Max. Power (60Hz) | Link Site |
| YH9600MED | HH186F | 8.8KVA | 8.9KVA | 9.5KVA | 9.6KVA | Click here |
| YH9700MTED | HH186F | 8.8KVA | 9KVA | 9.5KVA | 9.7KVA | Click here |
| YH14000MED | HH292F | 12KVA | 13KVA | 13KVA | 14KVA | Click here |
| YH14500MTED | HH292F | 12KVA | 13.5KVA | 13KVA | 14.5KVA | Click here |

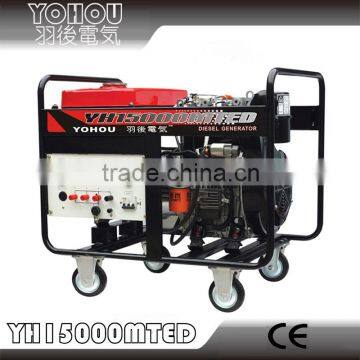

| YH15000MTED | HH292F | 12KVA | 13.5KVA | 13KVA | 15KVA | Click here |
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City,
adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 15 days. It’s up to the quantities you buy.
