Product Details
| Place of Origin | Shaanxi, China | Brand Name | QX | |
| Model Number | QTB100 | Usage | Industrial | |
| Theory | Temperature Transmitter | Accuracy | ≤±0.5%FS | |
| Temperature Range | 0~100℃ |
Product Description

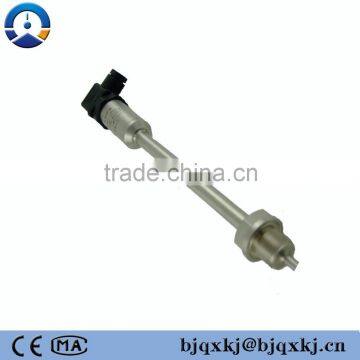

temperature transmitter QTB100, RS485 temperature transmitter, smart temperature transmitter
1. Overview
Temperature transmitter using PT100 as the signal measuring element. Amplifier circuit is provided with stainless steel shell, the sensor signals are converted to standard RS485 signal. The whole product is tested by components, semi-finished and finished products and aging rigorously.
The products with good reliability, wide adaptability, flexibility and diversity of products, widely used in petroleum, chemical, metallurgy, electric power, hydrology and other industrial process field temperature measurement and control.
2. Features:
*Protection:IP65
*Corrosion resistance
*Long-term stability
*Impact resistance, shock resistance
3. Specifications:
Measure range | 0~100℃ | Accuracy | ≤±0.5%FS |
Stability | ≤0.2% /year | Lead | Hirschmann |
Power supply | 24V±20% | Thread | M27*2 |
Protection | IP65 | Ambient temperature | -30℃~70℃ |
Operating temperature | -40℃~85℃ | Relative humidity | 0~80% |
4. Dimension
4.1 Mechanical connection:
Through the pressure tube joint, directly installed in the hydraulic line. In critical applications (such as violent vibration or shock), pressure pipe joint can be mechanically decoupling by micro hose.
4.2 Electrical connection:
1:power+ 2:power- 3:RS485A 4:RS485B
5. Warranty
The user is in compliance with the use and protection of rule conditions, since the date of the instrument ex-factory warranty for one year. Our company welcome customers consultation and recommendations.
