Telecom emergency Gasoline 50A/100A 48v dc generator

FOB Price

USD $2,400 - $2,999 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

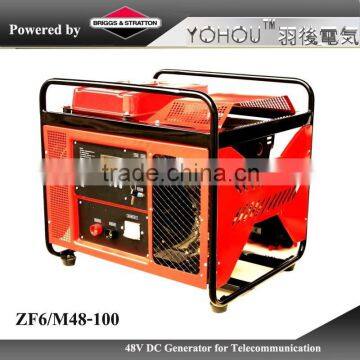

Telecom emergency Gasoline 50A/100A 48v dc generator

Product Description

1. 48V DC generator powered by Briggs & Stratton/KOHLER engine.

2. Small volume, light weight, stable performance, low failure rate;

3. Energy-saving and low emission; low fuel consumption;

4. Module design, safe and reliable; with alarm functions of over voltage, short circuilt, overheat power supply module, engine oil alert;

5. can work separately as well as work together in cabinets to supply power for telecom equipments.

6. 50A/100A 48v dc generator is ease of operation and maintainenance,

7. 48v dc generator is used for telecom emergency power, Mobile Base Station, etc.

Technical Parameter

Engine	Model	ZF3/M48-50	ZF6/M48-100
	Engine Brand	Briggs & Stratton	KOHLER CH440
	Horse Power (HP)	6.5HP	14HP
	Cooling type	Force air cooling	Force air cooling
	Fuel type	93# pure gasoline or above	93# pure gasoline or above
	Displacement (CC)	205 CC	429 CC
	Oil alert system	Yes	Yes
	Start system	Hand recoil or electric	Hand recoil or electric
	Fuel consumption (g./kw.hr)	≤370	≤350
	Fuel tank capacity (L)	15 L	15 L
Generator	Output voltage (V)	48V (rating voltage) 53.5V(floating voltage) 56.4V(even charging voltage )	48V (rating voltage) 53.5V(floating voltage) 56.4V(even charging voltage )
	Output Current (A)	55A (rating voltage) 52A(floating voltage) 50A(even charging voltage)	110A (rating voltage) 105A(floating voltage) 100A(even charging voltage )
	DC output power (kw/rpm)	3.2/3600rpm	6/3600rpm
	Voltage Regulated Accuracy	superior to ±1%	superior to ±1%
	Load sharing	superior to ±5%	superior to ±5%
	Load step overshoot	superior to ±5%	superior to ±5%
	Soft start time	3S -10S	3S -10S
	Weighted noise (300Hz-3400Hz)	<2mv	<2mv
	Peak-Peak Noise	<200mv	<200mv
	Broadband	3.4Hz-150Hz <50mV	3.4Hz-150Hz <50mV
		0.15Hz-30MHz <20mV	0.15Hz-30MHz <20mV
	Discrete noise	3.4Hz-150Hz <5mV	3.4Hz-150Hz <5mV
		150kHz-200kHz <3mV	150kHz-200kHz <3mV
		200kHz-500kHz <2mV	200kHz-500kHz <2mV
		0.5MHZ-30MHz <1mV	0.5MHZ-30MHz <1mV
Completed Generator	Noise level (dB(A)/7m	68	72
	Dimension (L x W x H) (mm)	600 x 410 x 490	654 x 540 x 616
	Net weight (Kg)	35KGS	62KGS
