Hot-dipped Galvanized Steel Grid (Real Factory)
- Xingang Port of China
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Other, Galvanized Steel Sheet, Stainless steel sheet, low carbon steel sheet. | |
| Type | Welded Mesh | Application | Filters | |
| Weave Style | Other, welded | Wire Diameter | 20*3mm,25*3mm,30*3mm etc | |
| Technique | Welded Mesh | Model Number | YT-20 | |
| Brand Name | Yuntao |
Product Description
Specifications
Steel Grid:Material:Hot-dipped galvanzied sheet.
Load bar:20*3mm,25*3mm,30*3mm etc
Cross bar diameter:5mm
Size:1m*2m etc

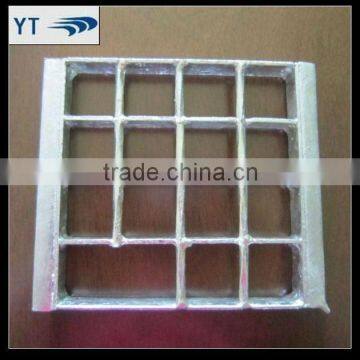

Steel Grid:
Steel Grid is a kind of open steel member with its bearing bars & cross bars jointing at their intersections either by welding or by locking.
Steel Grid is made by stainless or mild steel of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment. Industrial bar gratings can be actually made from copper, aluminum and other materials, while galvanized steel grid is the mostly used one due to its economic cost and good property.
General Usage of Steel Grid:
Flooring | all kinds of Trench cover |
Catwalk | Window and machinery safe guards |
Mezzanines/decking | Wash rack |
Stair tread | Ventilation screen |
Fencing | Storage rack |
Vault bin floor | Suspended ceiling |
Ramp |
Steel Grid Panels Types:
There are three kinds of steel gratings distinguished by different bearing bar types. The respective of features are as follows:
1) Plain: the most widely used gratings,available for flooring sidewalk,all kinds of ditch cover,stair tread,etc.
2) Serrated:best non-skid property & safety compared with plain grating.
3) I-shape:lighter,Not substantially weaken the case of load capacity more economical and practical comparing with plain grating.
The normal specifications we manufacture:
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Pictures:
Barbed Wire Normal Specification | ||||
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electro Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
