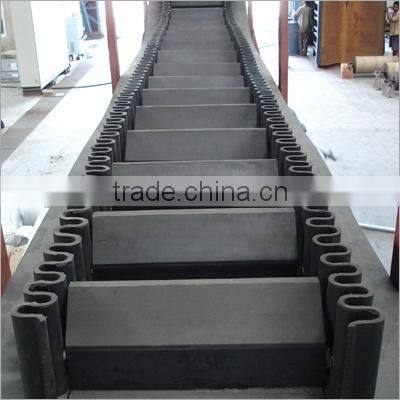

EP Corrugated Elevator Conveyor Belting Sidewall Conveyor Belt

Specifications

EP Corrugated elevator conveyor belting Sidewall conveyor Belt

90 Degree High Angel Corrugated Sidewall rubber conveyor belt:

Features corrugated sidewall conveyor belts

1) Corrugated sidewall belts for transport of bulk goods

2)Saves space, since conveyance at inclines of up to 90° is possible

3) Material conveyed is protected

4) Extremely high stability is provided in the traverse direction, good longitudinal flexibility

5) Different feed and discharge directions are possible by rotating the vertical runs

Advantages :
Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space requirement, no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.

The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
“TS and TCS” cleat are normally used for abrasion condition.
“T and TS” cleat are normally used up to 40°C, “TC and TCS” are normally used from 40°to 90°C.
Sidewall, cleat and base belt are joined through hot vulcanization.
Cleat and sidewall are joined through bolt to prevent leakage

The latest addition to the vast range of Conveyor Belts is The Corrugated Sidewall & Cross Cleats Conveyor Belts which have found acceptance with many of our existing customers.

Carcass type:

CC56

TC70

EP100, EP150, EP200, EP250, EP300, EP400, EP500

EE100, EE150, EE200, EE250, EE300, EE400, EE500

NN100, NN150, NN200, NN250, NN300, NN400, NN500

Steel Cord

Standards:

GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
