Galvanized Cable Tray Sizes Low Price and High Quality

• Mild Steel Perforated & Ladder Cable Trays of all types and sizes.
• Hot Dip Galvanized Perforated & Ladder Cable Trays of all sizes.
• Perforated & Ladder Cable Trays of all sizes manufactured from pre-galvanized sheets.
• Mild Steel Powder coated Perforated & Ladder Cable Trays of all sizes.
• F.R.P. & Aluminum Perforated & Ladder type trays of all sizes.
• Special supporting systems.
• Cable Race ways & Trunking.

Technical Specifications of Cable Tray (Perforated / Ladder):

Materials: Mild Steel, Aluminium.

Finish: Hot Dip galvanised, Powder Coated, Red oxide, Enamel Painted.

Length: Standard size is 2500 MM.

Steel: As per IS 2062 / 1079.

Galvanising: As per IS 2629 / 4759.

Type, Sizes & Specifications for M.S, G.I..

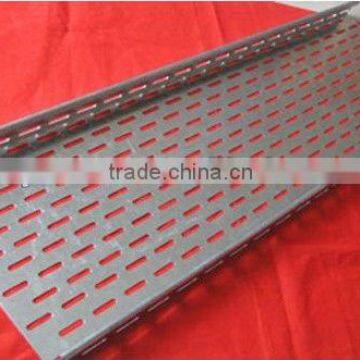

Light & Medium Duty Perforated Cable Tray

Heavy Duty Perforated Cable Tray

Ladder Type Cable Trays

The Ladder Type Cable Trays are manufactured in the width from 50 mm to 1200 mm : having Height from 50 mm to 150 mm and the Thickness from 18 SWG to 12 SWG with all accessories. These trays consists of two longitudinal side rails connected by individual transverse members.

Other Cable Tray Accessories are

Straight Tray, Horizontal Elbow / Tee / Cross / Reducer, Vertical Elbow Up / Inside / Down / Outside, Coupler plate with hardware.

Raceway / Trunking / Ducting Cable Tray

Specification & Description:

Width from 50mm to 600mm.

Height from 25mm to 150mm.
Length 2.5mm.

Type- Welded / Openable (Gasketed/without gasket)

Material- Mild Steel / Aluminium
Finish - Painted / GI / Powder Coated.
