Home > Products > Flame Resistant Conveyor Belt > Fire Resistant Cheap Rubber Belts With Tensile Strength up to 24 MPA
Fire Resistant Cheap Rubber Belts With Tensile Strength up to 24 MPA
- Tianjin Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Flame Resistant Conveyor Belt For Power, Metallurgical, Chemical Industries
-
Flame Resistant Rubber Conveyor Belt up to ISO, AS, DIN, RMA Standards
-
Fire Resistant Rubber Conveyor Belt for Flammable or Explosive Environment
-
Fire Resistant Rubber Conveyor Belt Factory
-
Fire Resistant Rubber Belting for Underground Mining
-
Fire Resistant Rubber Conveyor Belt
Product Details
| Place of Origin | Hebei, China | Brand Name | TRX fire resistant konveyor | |
| Model Number | fire resistant konveyor |
Product Description
fire resistant rubber belts with tensile strength up to 24 MPA
1. The conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendaring, firming and vulcanizing, etc.
2. The belt has characteristics of low elongation in warp and good troughability in weft, good water resistance, good wet strength, suitable for medium, long-distance and heavy-load transportation of oil materials&fat.
Technical Specifications for EP Conveyor Belt
Total Tensile Strength | Fabric Type | Top Cover Thickness | Bottom Cover Thickness |
( N/mm) | (mm) | (mm) | |
200-800 | EP100 | 3.0/4.5/6.0 | 1.5/3.0 |
315-1250 | EP150 | 3.0/4.5/6.0 | 1.5/3.0 |
400-1500 | EP200 | 3.0/4.5/6.0 | 1.5/3.0 |
500-2000 | EP250 | 3.0/4.5/6.0 | 1.5/3.0 |
500-2000 | EP300 | 3.0/4.5/6.0 | 1.5/3.0 |
630-2500 | EP400 | 3.0/4.5/6.0 | 1.5/3.0 |
Rubber Cover Property(DIN22102)
Item | Rubber grade(DIN22102) | |||
W | X | Y | Z | |
Tensile Strength | 18 | 25 | 20 | 15 |
Elongation at break(%)>= | 400 | 450 | 400 | 350 |
Abrasion | 90 | 120 | 150 | 250 |
Adhesion Between layers(DIN22102)
Item | Adhesion between fabrics(N/mm) | Adhesion between Fabric and Rubber(N/mm) | |
Cover<=1.5mm | Cover>1.5mm | ||
Max.<= | 20 | 20 | 20 |
Average>= | 5 | 3.5 | 4.5 |
Min.>= | 4 | 2.5 | 3.5 |
Recommended Minimum Pulley Diameter
Fabric type | Recommended Minimum Pulley Diameter (for reference only) | ||||||
2 piles | 3 piles | 4 piles | 5 piles | 6 piles | 7 piles | 8 piles | |
EP100 | 250 | 400 | 500 | 630 | 800 | 800 | 1000 |
EP150 | 315 | 400 | 630 | 800 | 800 | 1000 | 1250 |
EP200 | 315 | 500 | 630 | 800 | 1000 | 1000 | 1250 |
EP250 | 400 | 500 | 800 | 1000 | 1000 | 1250 | 1400 |
EP300 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1400 |
EP400 | 500 | 630 | 1000 | 1250 | 1250 | 1600 | __ |

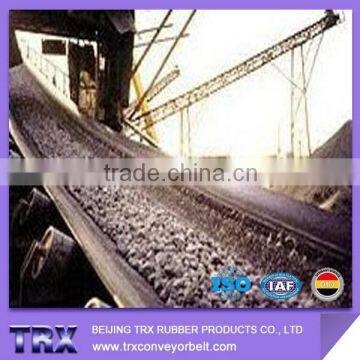

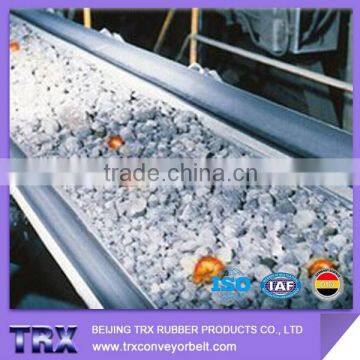

Widely applicated in coal, mining, port, metallurgy, power, chemical sectors for long-distance large amount and high-speed conveying of materials.
Contact Us
- Beijing TRX Rubber Products Co., Ltd.
- Contact nameSharon Sun Chat Now
- Phone0086-10-88696185
- Address7B, Building B, Golden Time Business Center, Bldg. 2, Yard 2, Landianchang East Rd.
